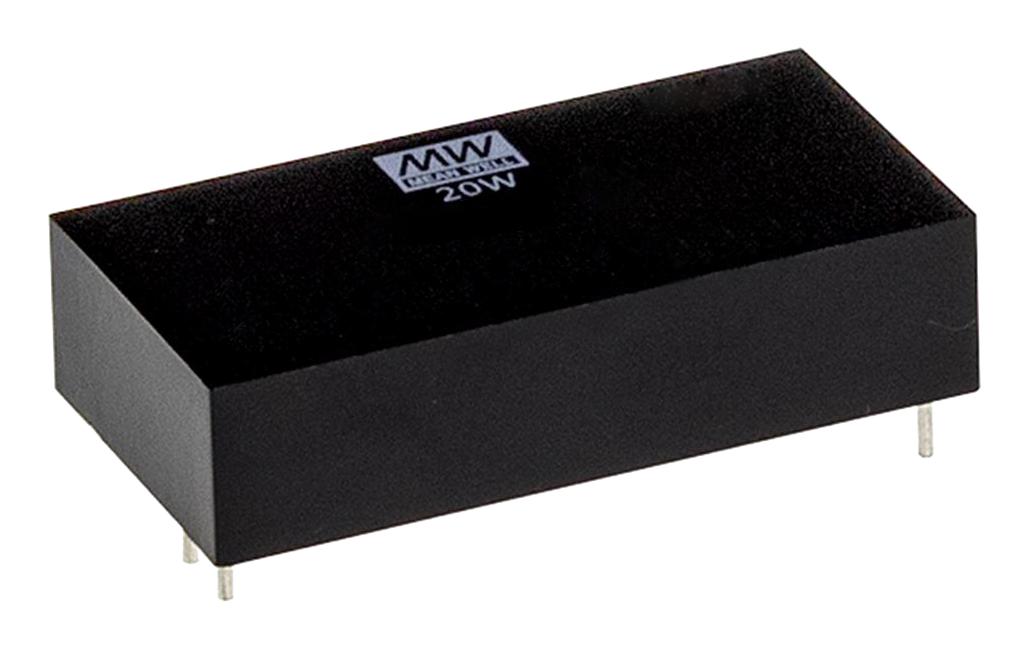

MEAN WELL MDS20B24 Medical Grade DC-DC Converter
The MDS20 series is a 20W medical-grade DC-DC converter in a compact 2x1 inch package, offering high efficiency up to 90%, wide temperature range from -40°C to +90°C, and reinforced safety compliance with IEC60601-1 standards. It features various input voltages (9-18V, 18-36V, 36-75V) with 2:1 input range and multiple output voltages (5V, 12V, 15V, 24V). Designed for medical devices, it includes features like low leakage current, high isolation voltage, and protections for short circuits, overload, and under-voltage lockout, ensuring reliable performance in critical environments.
MEAN WELL MDS20B24 Medical Grade DC-DC Converter Specifications:
- Input Voltage Range: 9~18V, 18~36V, 36~75V
- Rated Power: 20W
- Efficiency: up to 90%
- Isolation Voltage: 4KVAC high I/O isolation
- Operating Temperature: -40°C to +90°C
- Ripple & Noise: 60mVp-p
- Line Regulation: 0.5%
- Load Regulation: +0.5%
- Short Circuit Protection: Continuous, automatic recovery
- Overload Protection: 110% to 180% rated output power
- Under Voltage Lockout: 7.5Vdc, 15Vdc, 33Vdc for respective inputs
- Cooling: Free-air convection
- Humidity: 20% to 90% RH non-condensing
- Dimensions: 50.8mm (L) x 25.4mm (W) x 12mm (H)
- Case Material: UL94V-0 plastic
- Standards: IEC60601-1 (Medical safety), EN55011 (EMC emission), EN61000-4-2/3/4/5/6 (EMC immunity)
- Vibration Resistance: 10~500Hz, 2G
- Soldering Temp: Max 260°C for 1-3 sec.
Buy the Mean Well Series MDS 20W Medical Grade DC-DC Converter: MDS20B24
Purchase the high-performance MDS20B24 medical-grade DC-DC converter online today and ensure reliable power supply for medical devices. This compact, efficient, and safety-approved module offers a wide input voltage range of 18~36V, delivers 20W power, and features reinforced isolation, low leakage current, and comprehensive protections. Its high efficiency up to 90% reduces energy waste, while its robust design withstands extreme temperatures from -40°C to +90°C. Whether used in medical carts, oxygen monitors, or imaging equipment, this converter guarantees safety, durability, and optimal performance.
Buy Mean Well MDS20B24 now and experience unmatched reliability, high efficiency, and vital safety features for medical applications.
Frequently Asked Questions
Where can I buy MEAN WELL MDS20B24?
You can click on the BUY or RFQ button to purchase MDS20B24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS20B24?
You can download the MDS20B24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS20B24?
MEAN WELL
