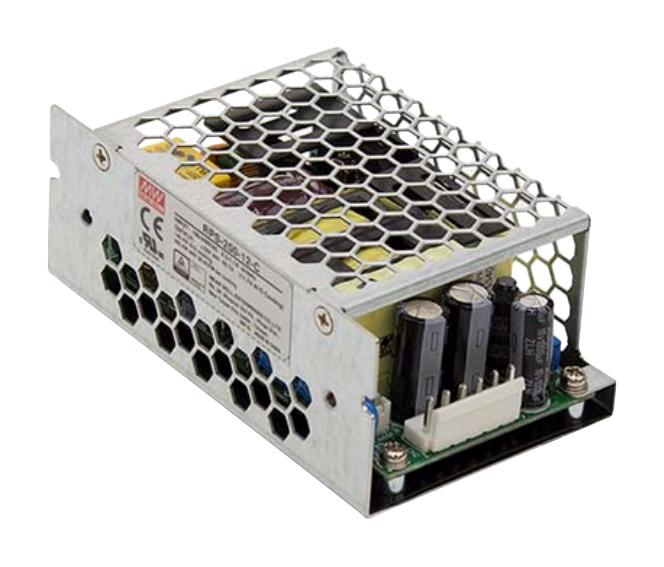

MEAN WELL RPS20048C Medical Power Supply
The RPS-200 series is a reliable 200W medical power supply designed for various medical systems including monitors, hemodialysis machines, sleep apnea devices, and BF-rated patient contact equipment. It features high efficiency up to 95%, low no-load power consumption below 0.5W, and very low leakage current under 130 μA. The compact size (4x2 inches) supports a wide input voltage range (80-264VAC) and offers multiple output voltages from 12V to 48V, complying with international safety standards such as IEC60601-1 and AAMI ES60601-1. The power supply is suitable for Class I and Class II medical applications, with protections for over-voltage, over-current, over-temperature, and short circuit, ensuring safe and dependable operation in demanding healthcare settings, with a lifespan exceeding 65,000 hours and a 3-year warranty.
MEAN WELL RPS20048C Medical Power Supply Specifications:
- Power Output: 200W
- Input Voltage Range: 80 ~ 264VAC, 113 ~ 370VDC
- Output Voltages: 12V, 15V, 24V, 27V, 48V
- Output Current: 10V 16.7A, 15V 13.44A, 24V 8.40A, 27V 7.5A, 48V 4.28A
- Efficiency: Up to 95%
- Ripple & Noise: Max 120mVp-p for most outputs, 420mVp-p for 48V
- Operating Temperature: -30°C to +70°C
- Humidity: 20% to 90% RH non-condensing
- Protection: Over-voltage, over-current, over-temperature, short circuit
- Leakage Current: Less than 130 μA
- Dimensions: PCB Type 101.6 x 50.8 x 29 mm, Enclosed Type 103.4 x 62 x 40 mm
- Standards: IEC60601-1, AAMI ES60601-1, EN55011, UL, CSA, CE
Buy the Buy Mean Well RPS-200 Part Number RPS20048C Online
Secure the high-performance medical power supply online today from Mean Well. The RPS-200 delivers 200W with high efficiency, low leakage current, and multiple output voltages. Its compact design fits all healthcare settings, supporting safety standards IEC60601-1 and AAMI ES60601-1 for patient contact devices. Designed for both Class I and Class II systems, it offers reliable protection features like over-voltage, over-current, and over-temperature shutdowns. Trust in robust construction with a lifespan over 65,000 hours, backed by a 3-year warranty for peace of mind in critical medical environments.
Buy Mean Well RPS-20048C now and experience unmatched reliability and performance in medical power applications by ensuring safety and efficiency.
Frequently Asked Questions
Where can I buy MEAN WELL RPS20048C?
You can click on the BUY or RFQ button to purchase RPS20048C from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part RPS20048C?
You can download the RPS20048C datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of RPS20048C?
MEAN WELL
