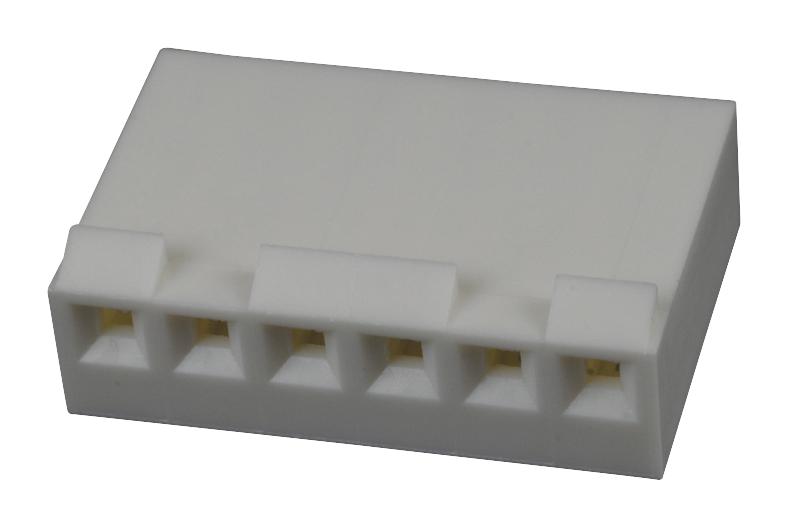

MOLEX 09508113 Multi-circuit Connector
This is a high-quality electrical connector designed for versatile circuit applications, accommodating 2-14 circuits with precise dimensional specifications and molded natural housing material. The connector features UL94V-0 rated glass-filled polyester construction, ensuring durability and safety in various operational environments. It is compatible with standard headers, with optional ramps and polarizing ribs for secure mating. The connector conforms to Class B cosmetic standards and incorporates proprietary features for reliable electrical performance and ease of installation. Suitable for industrial, automation, and electronic manufacturing uses, it provides robust connection solutions across diverse device assemblies.
MOLEX 09508113 Multi-circuit Connector Specifications:
- Material: N-Glass filled polyester, UL94V-0, molded natural
- Dimensions: Length varies from 3.96 to 16.71 mm, width from 0.058 to 0.156 inches, compatible with 18-24 AWG and 22-26 AWG wires
- Finishing: See terminal drawings for detailed finish specifications
- Housing accepts standard terminal numbers: 18-24 AWG (max insulation diameter 2.79 mm), 22-26 AWG (max insulation diameter 1.65 mm)
- Approximate pack quantity: 10,000 units per batch, with options for voids, ramps, and polarization
- Certifications: UL Listed (UL 94V-0), meets Class B cosmetic requirements
- Design: Features grooves on both sides, optional molded voids at specified locations, conforming to proprietary geometry for 2-14 circuits
- Additional options include breakaway friction lock ribs and polarizing features for secure mating
- Temperature Rating: Suitable for typical operational environments, detailed ratings per datasheet, which ensure resistance to environmental factors
- Application: Used in electronic, industrial equipment, automation systems, and control panels requiring reliable multi-circuit connectors
Buy the Molex Series 7-14 Circuit Connector: 09508113
Secure your electronics with the Molex Multi-circuit Connector. Designed for 2 to 14 circuits, it features durable UL94V-0 glass-filled polyester construction with precise dimensions. Compatible with standard headers and offering optional ramps and polarizing ribs, this connector ensures reliable and safe connections in industrial, automation, and control panel applications. Easy to install and conforming to Class B standards, it delivers high performance across diverse environments, making it the ideal choice for manufacturing, electronic device assembly, and high-reliability systems. Order online now for fast delivery.
Buy Molex 09508113 high-reliability circuit connector now and experience unmatched performance in industrial and electronic applications.
