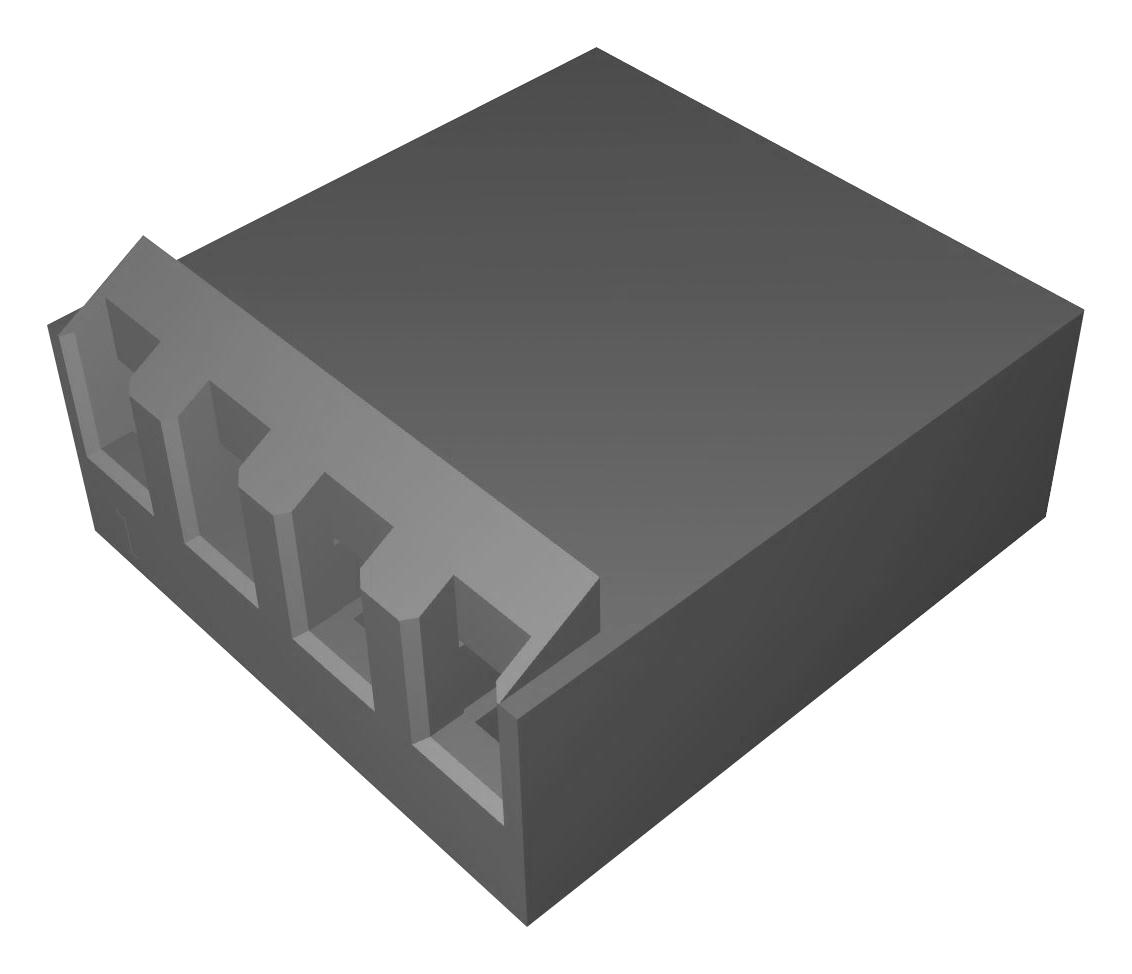

MOLEX 09930400 Power Connector Housing
This Molex KK 3.96mm crimp terminal housing accommodates 4 circuits and features a friction ramp design for secure connections. Glow-wire capable with a flammability rating of 94V-2, it complies with IEC standards for heat and fire resistance, making it suitable for power and wire-to-board applications. Constructed from durable nylon material, it offers reliable thermal and electrical performance. Designed for panel mounting, it ensures a stable connection interface. Compatible with specific crimp terminals for 18-24 AWG and 22-26 AWG wires, this housing is ideal for safe, high-performance electrical assemblies in various industrial and household devices.
MOLEX 09930400 Power Connector Housing Specifications:
- Circuits (maximum): 4
- Color - Resin: Black
- Flammability: 94V-2
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 1.058 g
- Number of Rows: 1
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 3.96mm
- Temperature Range - Operating: Not specified
- Material Info: Nylon
- Reference - Drawing Numbers: 3069-G04
- Packaging Specification: PK-3069-001-001
- Product Specification: PS-99020-0087-001
Buy the Molex 09930400 – Reliable Power Connectors for Industrial Applications
Experience the guaranteed quality and safety of Molex’s power connector housing. Designed for electrical reliability, this 4-circuit housing features glow-wire capability, flame resistance, and durable nylon construction. Perfect for industrial or household power applications, it ensures secure locking and excellent performance in challenging environments. Buy online now to ensure your projects meet safety standards with a trusted connection systems provider. Quick, secure, and compatible with various crimp terminals for your wire management needs.
Order your Molex Series 3069 09930400 today and ensure your electrical projects benefit from dependable, glow-wire capable housing solutions tailored for power and wire-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 09930400?
You can click on the BUY or RFQ button to purchase 09930400 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 09930400?
You can download the 09930400 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 09930400?
MOLEX
