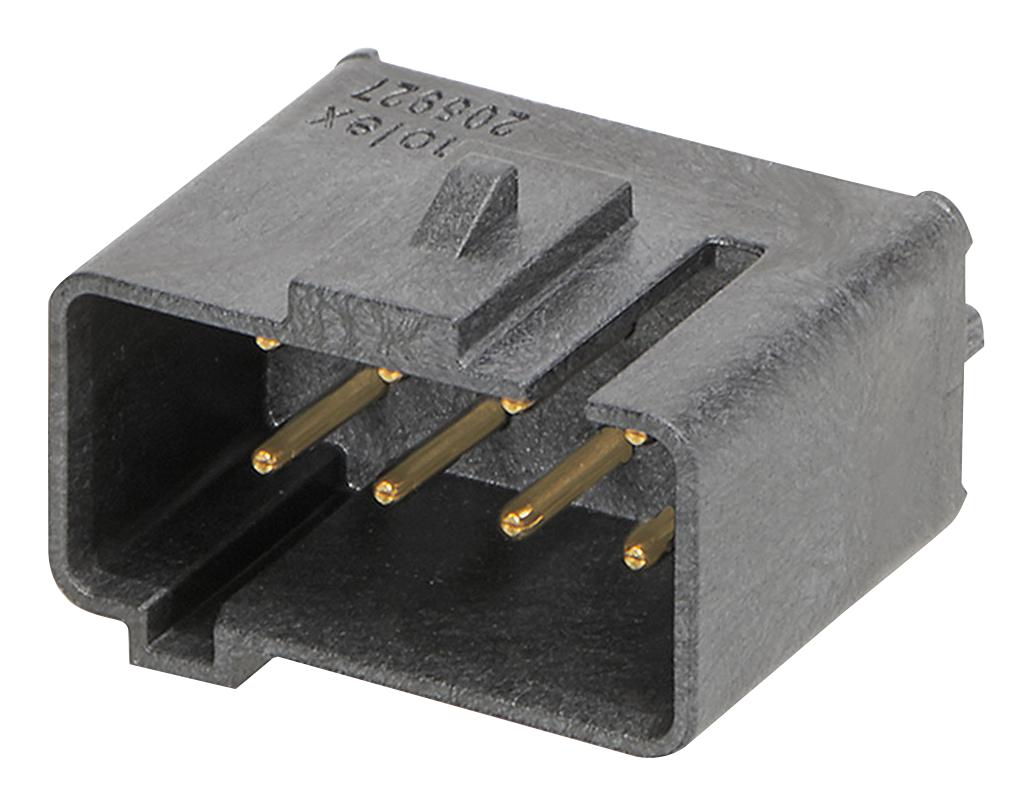

MOLEX 2059271110 Power Header
The MultiCat Mid-Power Vertical Header offers a reliable, high-current PCB connection solution featuring 8 circuits and precision-machined contacts. With a PC tail length of 2.90mm, it provides excellent durability with up to 500 mating cycles. Constructed from brass with gold over nickel plating, it supports a maximum voltage of 500V AC/DC and a current of 6.5A per contact. Its robust design includes a black liquid crystal polymer resin ensuring high-temperature resistance from -40° to +150°C, making it ideal for industrial and power applications requiring secure wire-to-board connections.
MOLEX 2059271110 Power Header Specifications:
- Circuits (loaded): 8
- Circuits (maximum): 8
- Color - Resin: Black
- Durability (mating cycles max): 500
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Gold over Nickel
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 2.229g
- PC Tail Length: 2.90mm
- Temperature Range - Operating: -40° to +150°C
- Voltage - Maximum: 500V AC/DC
- Current - Maximum per Contact: 6.5A
- Orientation: Vertical
- Packaging Type: Tray
- Pitch - Mating Interface: 3.60mm
- Guide to Mating Part: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Shrouded: No
Buy the Molex 2059271110 – Reliable Power Connectors for Industrial Applications
Discover the excellence of Molex Power Header, ideal for high-current power distribution and industrial wire-to-board connections. Featuring 8 circuits, gold-plated contacts, and durable liquid crystal polymer construction, this product delivers reliable performance up to 500V and 6.5A per contact. Its compact design with a 2.90mm PC tail ensures easy installation and secure mating. Perfect for demanding applications requiring high-temperature resistance, durability, and precise connectivity, making it an essential component for power management systems and industrial automation projects.
Get Molex 2059271110 today—built for precision and long-lasting durability in power and wire-to-board connections.
