MOLEX 2153431215 Mini-Fit Jr. Male-to-Pigtail

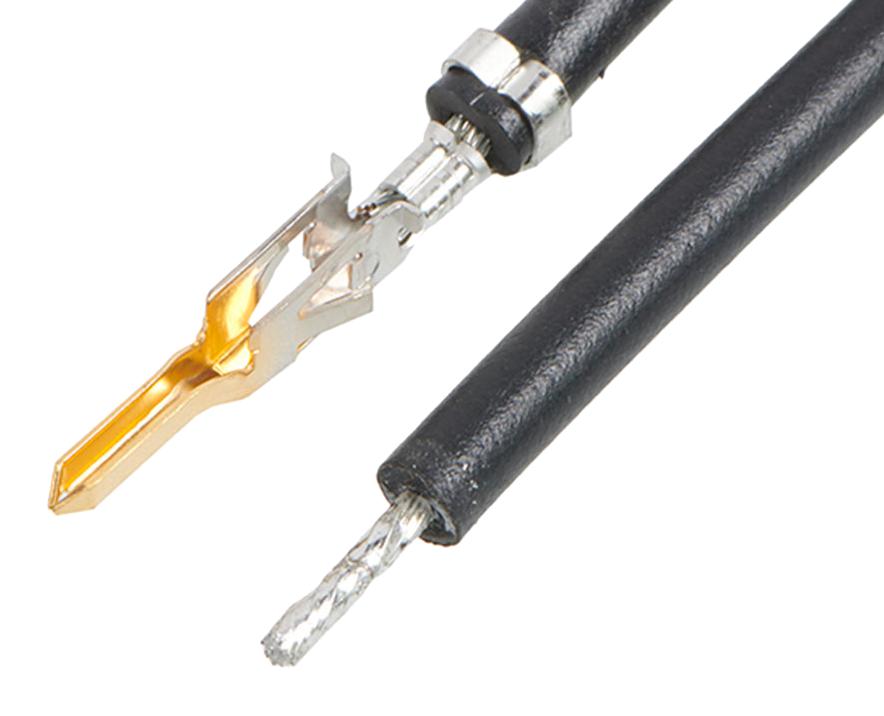

The MOLEX 215343-1215 is a pre-crimped lead assembly designed for efficient and reliable power and wire-to-wire connections. This assembly combines a Mini-Fit Jr. male connector with a pigtail termination, providing a convenient and ready-to-use solution. The gold plating on the connector ensures excellent conductivity and corrosion resistance, while the 18 AWG wire gauge supports a maximum current of 9.0A and a voltage of 600V. It is commonly used in applications requiring a pre-terminated connection, simplifying assembly and reducing labor costs.
MOLEX 2153431215 Mini-Fit Jr. Male-to-Pigtail Specifications:
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_to_connector: Mini-Fit Jr.-to-Pigtail
- overview: Off-the-Shelf Pre-Crimped Leads
- product_name_short: Mini-Fit Jr.
- upc: 193264560431
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Black
- gender: Male-Pigtail
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Tin
- net_weight: 7.410/g
- packaging_type: Bag
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_maximum_per_contact: 9.0A
- voltage_maximum: 600V
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free_status: Not Low-Halogen
- use_with_housing: Mini-Fit Jr. Plug Housing 5559, Mini-Fit BMI Plug Housing 42475
