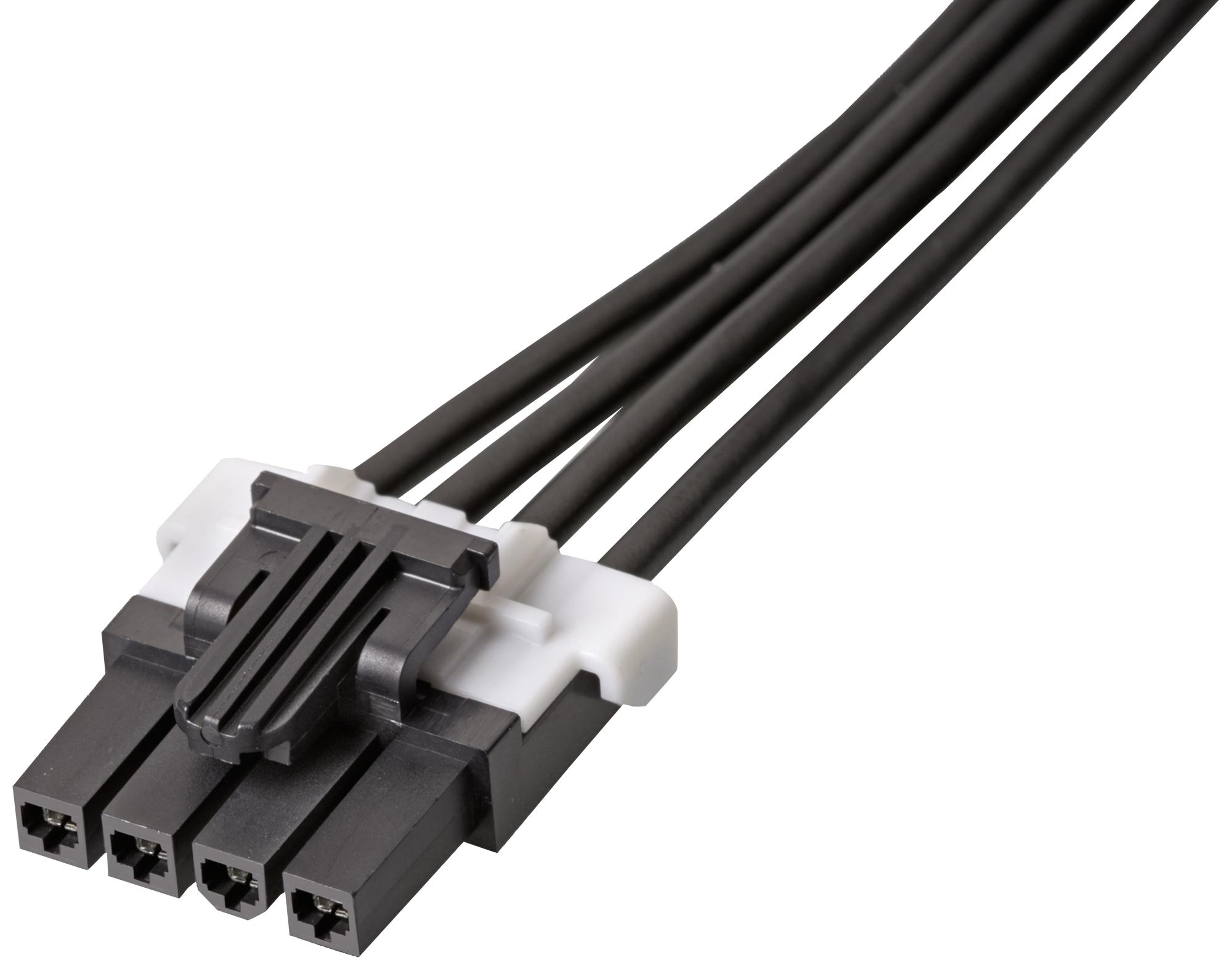

MOLEX 1451350401 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0401 is a Mini-Fit TPA2 to Mini-Fit TPA2 off-the-shelf (OTS) cable assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly offers a convenient and reliable connection solution with a 150mm length and 4 circuits. Constructed with phosphor bronze and nylon materials, and featuring tin plating on both mating and termination interfaces, it ensures excellent conductivity and durability. It is RoHS compliant and suitable for various industrial and commercial applications requiring secure and efficient power transmission.
MOLEX 1451350401 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- description: Mini-Fit TPA2-to-Mini-Fit TPA2 Off-the-Shelf (OTS) Cable Assembly, Single Row, 150.00mm Length, 4 Circuits, Black
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2
- overmolded: No
- cable_length: 150.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 15.637/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 200471, 200488, 5559, 5566, 5569
- drawing_number: 4000095326-000
Buy the 145135-0401 MOLEX Mini-Fit TPA2 Cable Assembly | myMectronic
Purchase the MOLEX 145135-0401 Mini-Fit TPA2 Cable Assembly securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1451350401?
You can click on the BUY or RFQ button to purchase 1451350401 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1451350401?
You can download the 1451350401 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1451350401?
MOLEX
