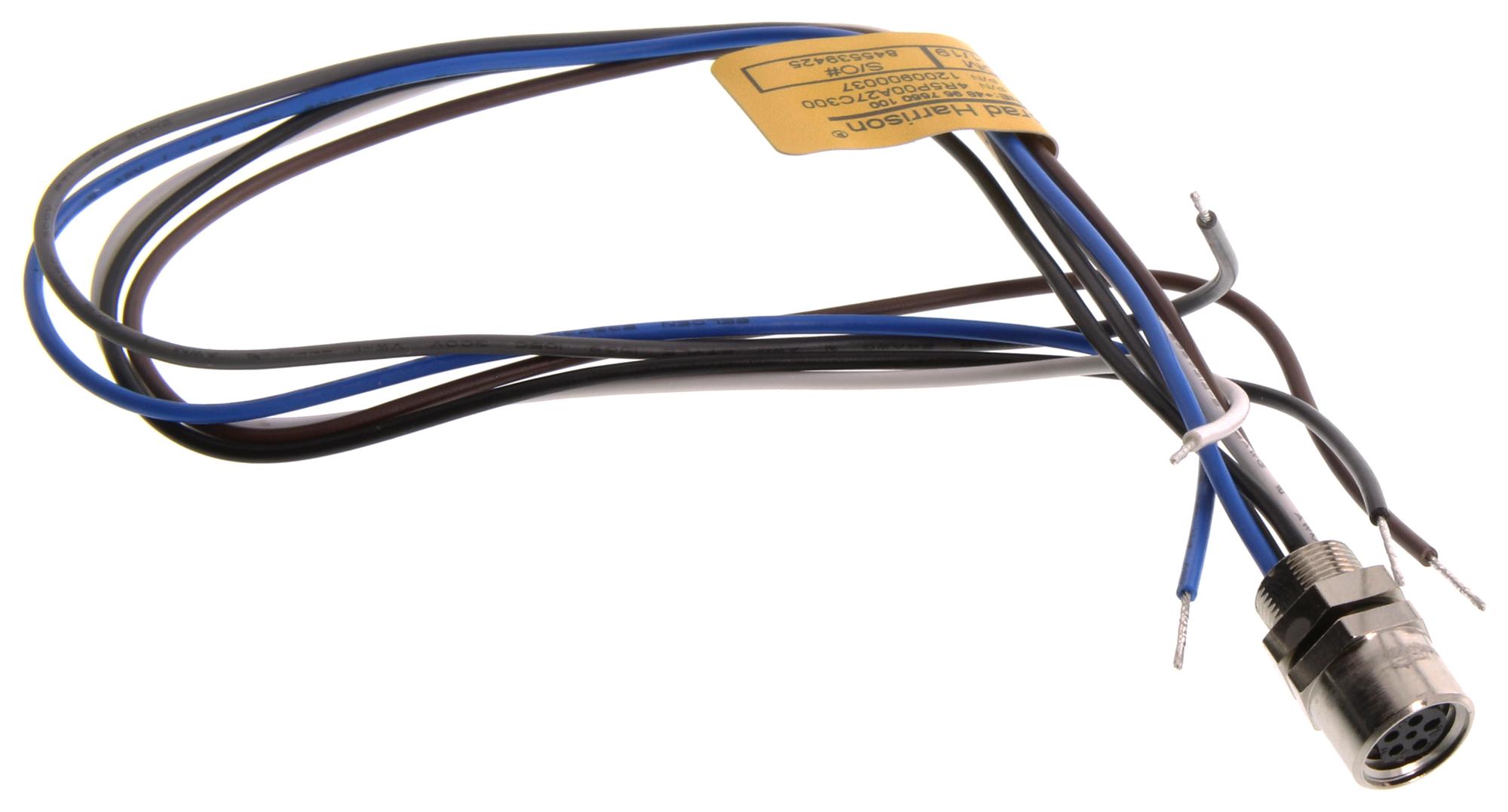

MOLEX 1200900037 Industrial Sensor Connector
The Nano-Change M8 Receptacle is a robust 5-pole connector with M8 x 0.5 mounting threads, designed for industrial automation and sensor connections. It features a straight female design with 22 AWG lead compatibility, a 0.30m cable length, and an IP67 rating for protection against dust and water ingress. Made from nickel-plated brass, it operates within a temperature range of -20°C to +105°C, supporting a maximum current of 3A and voltage ratings up to 60V AC/75V DC. Its compact design is ideal for rugged industrial environments requiring reliable, corrosion-resistant connections.
MOLEX 1200900037 Industrial Sensor Connector Specifications:
- Series: Nano-Change (M8)
- Product Family: Industrial Receptacles
- IP Rating: IP67
- NEMA Rating: NEMA 6
- Type: Female straight receptacle
- Mounting Thread Size: M8 x 0.5
- Cable Length: 0.30m
- Material: Nickel-plated brass
- Poles: 5
- Operating Temperature Range: -20°C to +105°C
- Wire Size: 22 AWG
- Electrical Current: 3A maximum per contact
- Voltage Rating: 60V AC / 75V DC
- Connection Type: Female with internal thread
- Gender: Female
- Coupling: Internal thread, straight
- RoHS Compliant: Yes
- UL Certified: Yes
- Certifications: RoHS, UL
Buy the Molex Series Nano-Change M8 Receptacle: 1200900037
Upgrade your industrial automation with the Molex Nano-Change M8 Receptacle. Featuring a durable nickel-plated brass construction, IP67 protection, and a compact 0.30m cable, it ensures reliable, corrosion-resistant connections in rugged environments. Supporting 3A current and 60V AC/75V DC voltage, this connector is ideal for sensors and automation devices. Easy to install with M8 x 0.5 internal threading, it combines robustness with ease of use, making it an essential component for reliable industrial wiring systems.
Buy Molex Nano-Change M8 receptacle now and experience unmatched reliability and performance in industrial sensor and automation connections.
Frequently Asked Questions
Where can I buy MOLEX 1200900037?
You can click on the BUY or RFQ button to purchase 1200900037 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1200900037?
You can download the 1200900037 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1200900037?
MOLEX
