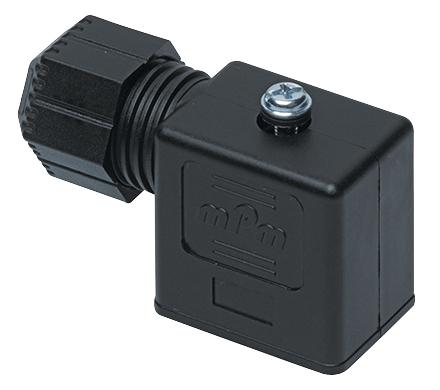

MOLEX 1212020001 industrial valve connector
The mPm DIN Valve Connector is a robust, IP65/IP67 rated field attachable connector designed for industrial automation. It features a B-11mm form with external threading, and accommodates 2 poles plus a ground terminal. Made from durable polyamide with silver plating contacts, it supports a maximum current of 16A at 250V AC and 300V DC, operating within a temperature range of -40°C to +90°C. Ideal for industrial valve applications, it ensures reliable electrical connections in demanding environments with nitrile gasket sealing for enhanced protection.
MOLEX 1212020001 industrial valve connector Specifications:
- Series: 121202
- Form: B-11mm
- IP Rating: IP65, IP67
- Material - Contact: Silver-plated brass
- Material - Connector Body: Polyamide
- Material - Coupling Nut: N/A
- Material - Plating Mating: Silver
- Net Weight: 19.522 grams
- Orientation: 90° Angle
- Pitch - Mating Interface: 11.00mm
- Poles: 2
- Temperature Range - Operating: -40°C to +90°C
- Wire Size AWG: N/A
- Current - Maximum per Contact: 16A
- Voltage - Maximum: 250V AC / 300V DC
- Cable Diameter: N/A
- Coupling Type: External Thread
- Diagnostics / LEDs: No
- Gender: N/A
- Keyway: None
- UPC: 884982012448
- Reference - Drawing Numbers: C22200NOR
- Packaging Specification: PK-121202-C22-001
- Product Specification: PS-121201-001-001, STR-1251-001
- RoHS Compliance: Yes
- REACH SVHC Status: Contained
- Halogen-Free: Yes
Buy the Molex 121202 – Reliable DIN Valve Connector for Industrial Applications
Secure your industrial automation projects with the high-quality Molex 121202 DIN valve connector. Featuring IP65/IP67 ratings, external threading, and a 90° angle design, this connector provides reliable electrical connections certified for operational temperatures from -40°C to +90°C. Made from durable polyamide with silver-plated contacts, it supports up to 16A at 250V AC. Easy to install, field attachable, and suitable for demanding industrial environments, making it an excellent choice for reliable valve control systems.
Buy Molex 121202 now and experience unmatched reliability and performance for industrial valve connections in demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 1212020001?
You can click on the BUY or RFQ button to purchase 1212020001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1212020001?
You can download the 1212020001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1212020001?
MOLEX
