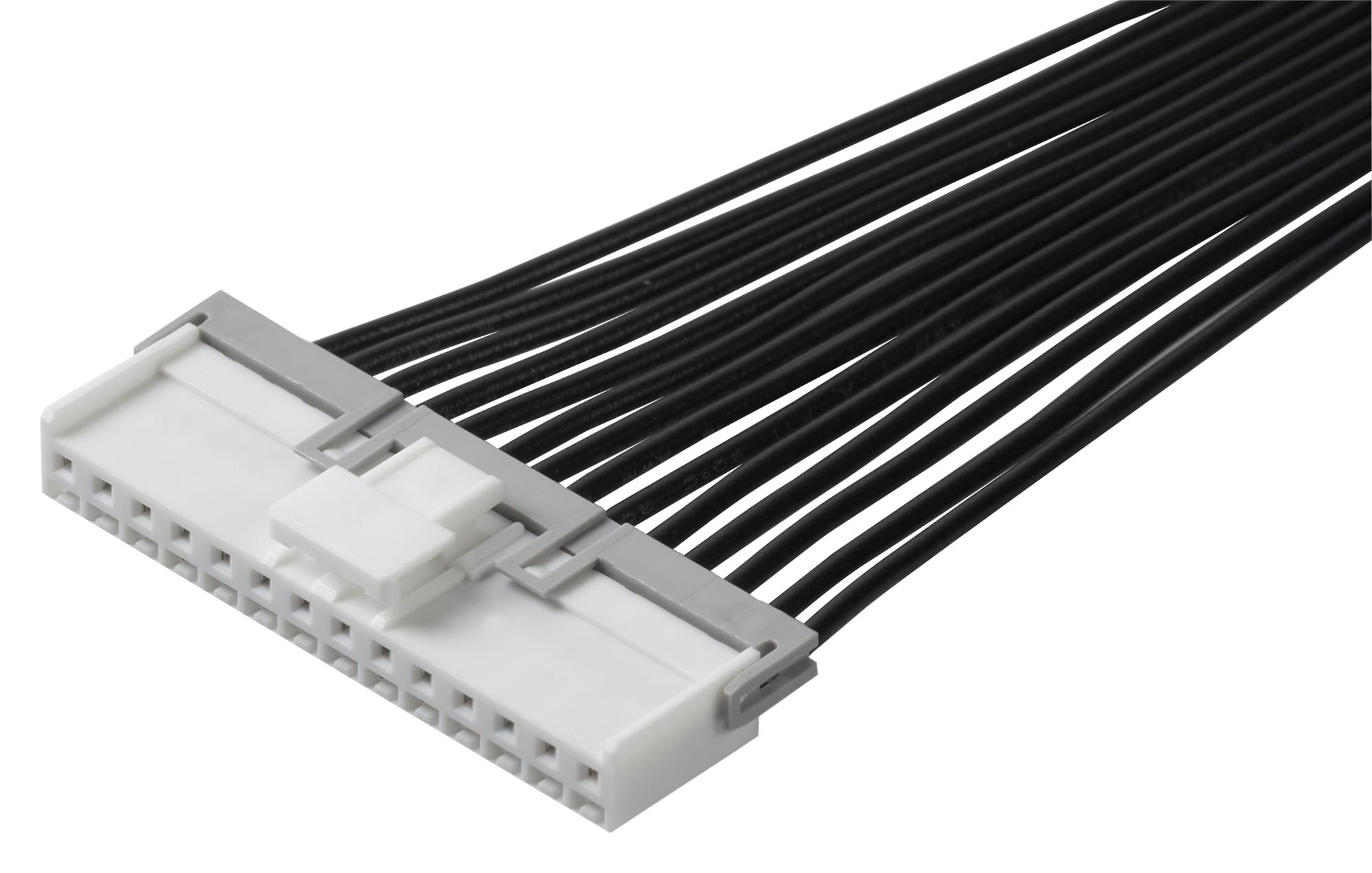

MOLEX 151370203 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0203 Mini-Lock wire-to-board connector assembly offers a robust and compact solution for connecting wires to circuit boards. This connector is ideal for applications requiring a secure and reliable signal transmission, such as in industrial equipment, automation systems, and consumer electronics. Its Mini-Lock design ensures a positive locking mechanism, preventing accidental disconnections. The assembly includes a 300mm cable length and a female-female configuration, making it suitable for connecting two female connectors.
MOLEX 151370203 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- product_family: Cable Assemblies
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- cable_length: 300.00mm
- circuits_loaded: 2
- color_resin: Natural
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin (0.889µm)
- material_plating_termination: Matte Tin
- material_resin: Polyester
- net_weight: 4.020/g
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
