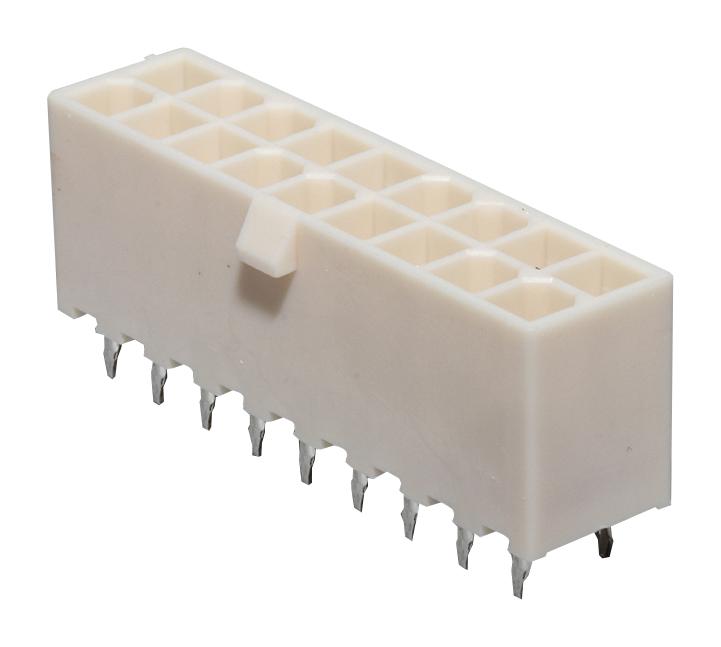

MOLEX 39288180 Mini-Fit Jr. Power Connector
The MOLEX 39-28-8180 is a Mini-Fit Jr. Power Connector, specifically a vertical header designed for robust wire-to-board connections. This connector features 18 circuits arranged in a dual-row configuration, offering increased current handling capabilities. The tin plating on both the mating and termination interfaces ensures reliable connectivity and corrosion resistance. It is suitable for applications requiring a durable and compact power connector solution, commonly used in industrial equipment, consumer electronics, and automotive systems. For higher amperage requirements, consider using the Mini-Fit Plus HCS family terminals and headers.
MOLEX 39288180 Mini-Fit Jr. Power Connector Specifications:
- Circuits (Loaded): 18
- Circuits (maximum): 18
- Color - Resin: Natural
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 3.50mm
- PCB Locator: Yes
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface Style: Through Hole
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 005
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 240
- Engineering Number: 5566-18A-210
