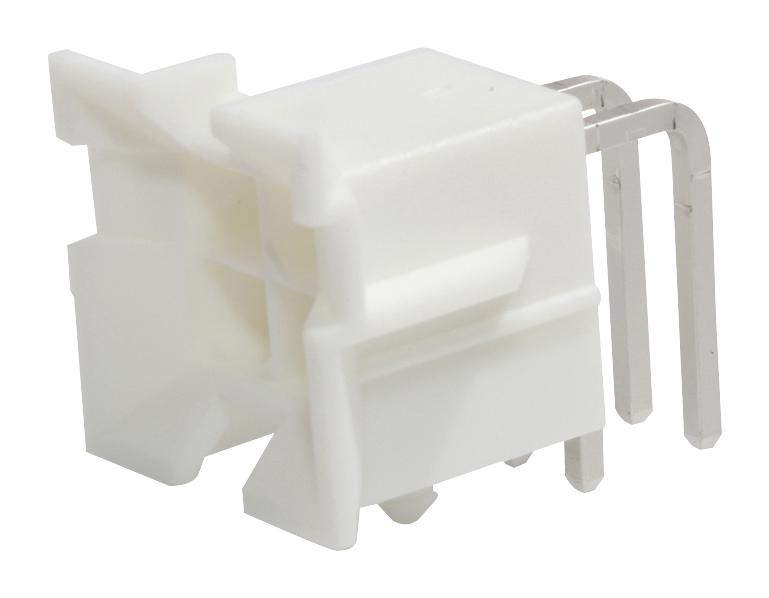

MOLEX 15249064 Mini-Fit BMI Connector
The Mini-Fit BMI Header is a right-angle, dual-row connector designed for board-to-board, power, and wire-to-board applications. Made from PA Polyamide Nylon 6/6 with UL 94V-0 flammability rating, it supports up to 13A per circuit and a maximum voltage of 600V. The connector features a PCB lock with snap-in plastic peg, tin-plated brass contacts, and a 3.30mm pitch. It is resistant to high temperatures from -40°C to +105°C and supports multiple mating cycles for durability in various electronic assemblies.
MOLEX 15249064 Mini-Fit BMI Connector Specifications:
- Number of Circuits: 6
- Color - Resin: Natural (White)
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Flammability: UL 94V-0
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 13A
- Voltage - Maximum: 600V
- Pitch - Mating Interface: 3.30mm
- PCB Tail Length: 1.80mm
- Net Weight: 2.626g
- Durability (Mating Cycles Max): 30
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.80mm
- Packaging Type: Tray
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Surface Mount Compatible: No
- Glow-Wire Capable: No
Buy the Molex Series Mini-Fit BMI: 15249064
Discover the reliable Mini-Fit BMI Connector designed for high-performance electronic assemblies. This dual-row, right-angle connector features UL 94V-0 flammability rating, tin-plated brass contacts, and supports 13A current at 600V. Its durable construction withstands up to 30 mating cycles and operates efficiently between -40°C and +105°C. Perfect for board-to-board, power, and wire-to-board connections, it offers excellent stability, easy mating, and long-term reliability, making it an ideal choice for a wide range of electronic devices and industrial applications.
Get Molex Mini-Fit BMI 15249064 today—built for precision and long-lasting durability in electronic interconnections.
