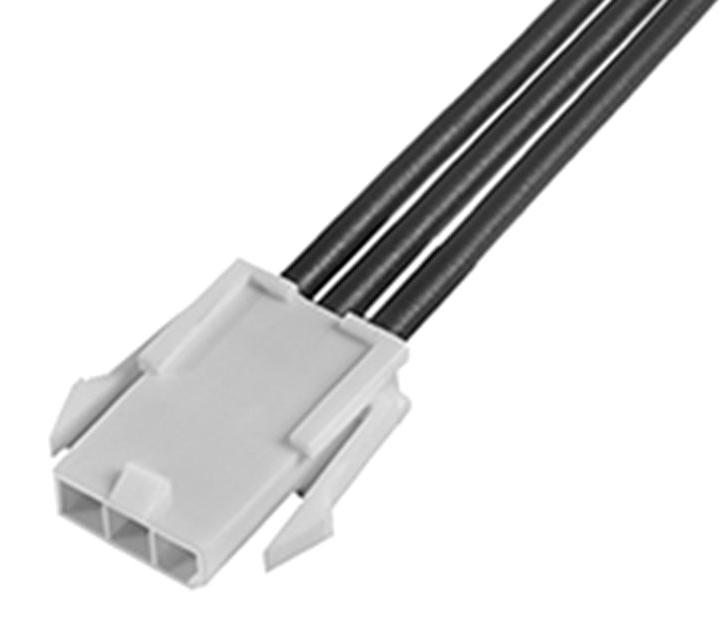

MOLEX 2153202032 Power Cable Assembly
The Mini-Fit Jr. Female-to-Female Cable Assembly features a durable 300mm length, gold-plated contacts, and a black nylon body. Designed for power applications, it connects two Mini-Fit Jr. connectors in a single row setup. With 3 circuits, it supports up to 9A and 600V ratings, making it suitable for wire-to-wire and wire-to-board connections. Its crimp or compression termination ensures reliable electrical contact. The assembly complies with EU RoHS and China RoHS standards, ensuring environmentally friendly and safe operation in various electronic and industrial systems.
MOLEX 2153202032 Power Cable Assembly Specifications:
- Cable Length: 300mm
- Number of Circuits: 3
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Electrical Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Contact Material: Brass
- Plating: Gold (Au)
- Termination: Crimp or Compression
- Packaging: Bag
- RoHS Compliant: Yes
- Halogen-Free: No
- UL Standards: UL 1015
- Assembly Type: Discrete Wire Assembly
Buy the Buy Molex Mini-Fit Jr. Cable Assembly Part Number 2153202032 Online
Purchase the Molex Mini-Fit Jr. Female-to-Female Cable Assembly online to enjoy dependable power connections with gold-plated contacts and a durable nylon housing. This 300mm cable supports 3 circuits and offers a maximum current of 9A at 600V, ideal for wire-to-wire and wire-to-board applications in industrial, electronic, and automation systems. Its crimp or compression termination guarantees secure electrical contact, while RoHS compliance ensures environmentally safe operation. Order now for quick delivery and ensure your power needs are met with quality and reliability.
Order your Molex Mini-Fit Jr. Female-to-Female Power Cable Assembly 300mm today and ensure reliable, high-quality connections for your power distribution needs.
Frequently Asked Questions
Where can I buy MOLEX 2153202032?
You can click on the BUY or RFQ button to purchase 2153202032 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153202032?
You can download the 2153202032 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153202032?
MOLEX
