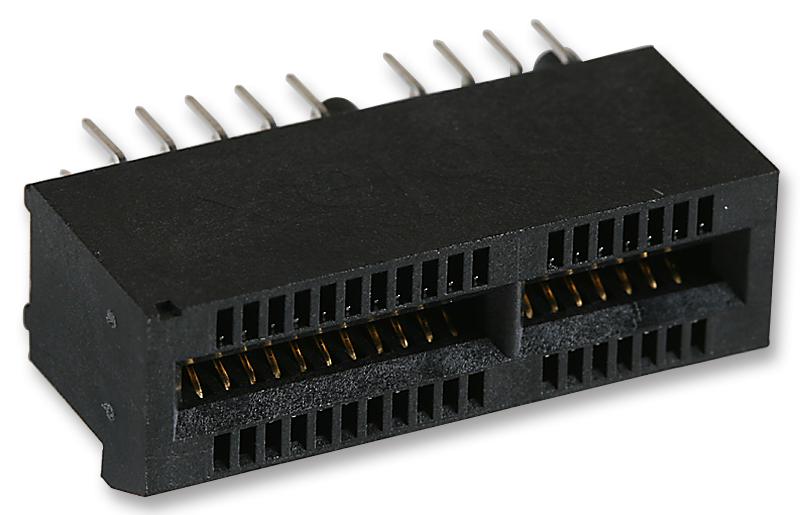

MOLEX 877159002 PCI Express Connector
This PCI Express Card Edge Connector features a 1.00mm pitch with 36 circuits, made from nylon 4/6 glass-filled, black, with a phosphor bronze housing. It has 0.38μm gold solder tails, is lead-free, RoHS compliant, and certified by CSA and UL. Designed for high-speed data transmission up to 8.0 Gbps, it supports PCle interface, with vertical orientation, a temperature range of -55°C to +85°C, and a mating lifetime of up to 30,000 cycles. Suitable for industrial, computing, and telecommunications applications with high reliability.
MOLEX 877159002 PCI Express Connector Specifications:
- Pitch: 1.00mm
- Circuits: 36 (maximum 64)
- Material - Resin: High Temperature Thermoplastic
- Material - Metal: Phosphor Bronze
- Plating - Mating: Gold
- Plating - Termination: Tin
- Housing: Nylon 4/6 Glass-filled, Black
- Contact Tail Length: 2.54mm
- Maximum Current per Contact: 50V AC (RMS)/DC
- Temperature Range - Operating: -55°C to +85°C
- Durability (mating cycles): 30,000
- Entry Angle: Vertical
- Flammability: 94V-0
- Certification: UL, CSA, RoHS compliant
- Net Weight: 2.59g per connector
Buy the Molex 0877150 U–2013 Reliable PCI Express Connector for Industrial Applications
Purchase the Molex PCI Express connector online today to ensure your electronic projects benefit from quality, durability, and high-speed data transfer. Designed for industrial applications, this connector supports up to 8.0 Gbps data rate, features gold-plated contacts for excellent conductivity, and adheres to RoHS and UL standards. Its sturdy nylon housing and phosphor bronze structure deliver long-lasting performance, with a mating cycle durability of up to 30,000 cycles. Easily integrate this reliable connector into your systems for seamless operation and superior connectivity.
Buy Molex 0877150 now and experience unmatched reliability and performance in high-speed data connectivity for industrial and computing systems.
Frequently Asked Questions
Where can I buy MOLEX 877159002?
You can click on the BUY or RFQ button to purchase 877159002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 877159002?
You can download the 877159002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 877159002?
MOLEX
