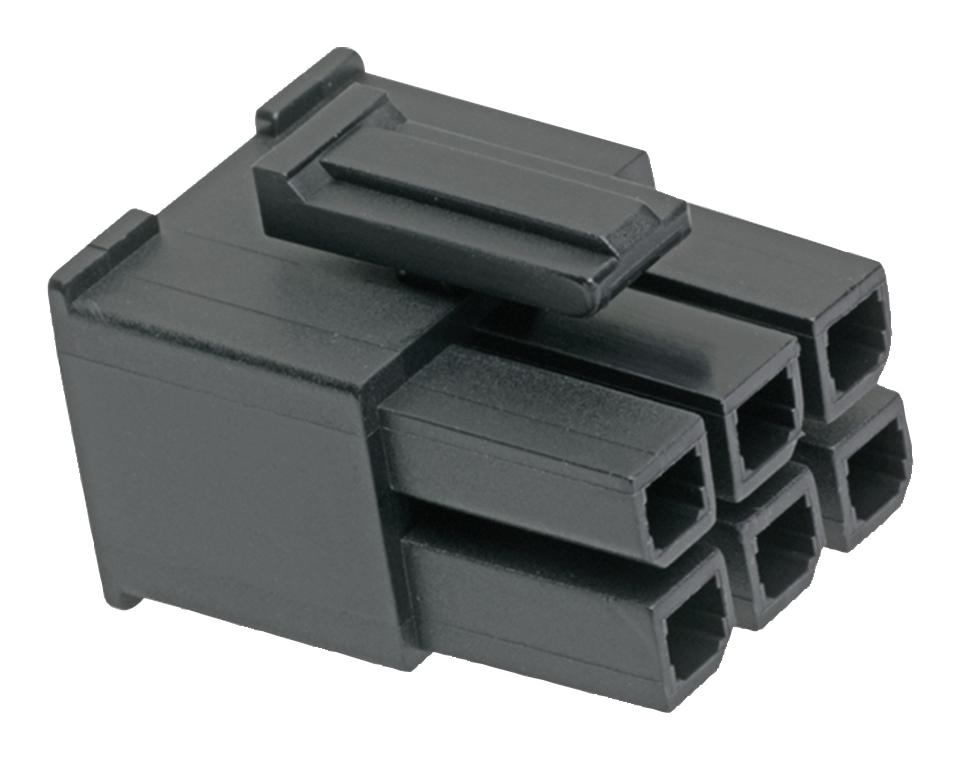

MOLEX 1716920106 Receptacle Housing
The MOLEX 171692-0106 is a Mega-Fit power connector receptacle housing, ideal for wire-to-board and wire-to-wire connections. This housing accommodates 6 circuits in a dual-row configuration and is manufactured with UL 94 V-0 resin for enhanced safety. It is designed to mate with Mega-Fit headers and utilizes Mega-Fit crimp terminals for secure connections. The housing is suitable for applications requiring robust power transmission and is a key component in various industrial and consumer electronic devices.
MOLEX 1716920106 Receptacle Housing Specifications:
- Circuits (maximum): 6
- Circuits Detail: 6
- Color - Resin: Black
- Flammability: 94V-0
- Gender: Male
- Glow-Wire Compliant: No
- Lock to Mating Part: Yes
- Material - Resin: PBT
- Net Weight: 2.720/g
- Number of Rows: 2
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 5.70mm
- Pitch - Termination Interface: 5.70mm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40°C to +120°C
- Current - Maximum per Contact: 23.0A
- Lead-freeProcess Capability: N/A
