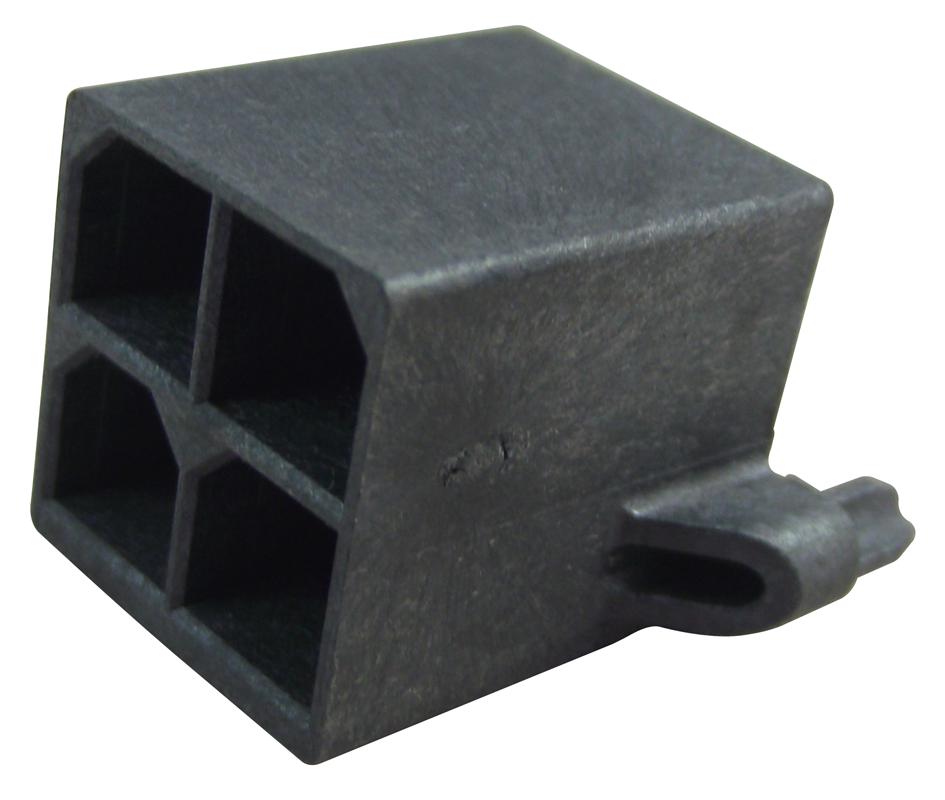

MOLEX 1720640004 Power Connector
The Mega-Fit power connectors feature a 5.70mm pitch, right-angle header with four circuits, gold plating, and UL 94 V-0 flammability rating. Designed for wire-to-board applications, these high-temperature thermoplastic connectors are suitable for industrial and electronic systems demanding reliability. With a maximum current of 23.0A per contact and maximum voltage of 600V, they are compatible with PCB thicknesses of 1.57mm and 2.36mm and offer PCB retention, polarization, and shrouding for secure connections. Certified under UL and CSA, these connectors withstand operating temperatures from -40°C to +120°C, ensuring longevity and safety in diverse environments.
MOLEX 1720640004 Power Connector Specifications:
- Pitch: 5.70mm
- Number of Circuits: 4
- Color - Resin: Black
- Material - Metal: Copper
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Flammability: UL 94 V-0
- Temperature Range - Operating: -40°C to +120°C
- Maximum Current per Contact: 23.0A
- Maximum Voltage: 600V
- Mated Height: 14.53mm
- Unmated Height: 16.78mm
- Wire Range: Not specified
- PCB Thickness - Recommended: 1.57mm, 2.36mm
- Surface Mount Compatible: No
- Lock to Mating Part: Yes
- Polarized to Mating Part: Yes
- Shrouded: Yes
Buy the Molex 172064– Reliable Power Connectors for Industrial Applications
Upgrade your electronic and industrial systems with Molex Power Connectors. Designed for durability and reliability, these 4-circuit connectors feature gold-plated contacts, UL approval, and a compact 5.70mm pitch. Suitable for power distribution with a maximum of 23A per contact and 600V voltage rating, they offer secure polarization, shrouding, and high-temperature resistance from -40°C to +120°C. Available in a tray packaging format, they ensure easy installation and continuous operation in demanding environments. Order online today for dependable power solutions.
Buy Molex 172064 power connectors now and ensure secure, reliable power distribution with high current capacity and excellent safety features.
Frequently Asked Questions
Where can I buy MOLEX 1720640004?
You can click on the BUY or RFQ button to purchase 1720640004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1720640004?
You can download the 1720640004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1720640004?
MOLEX
