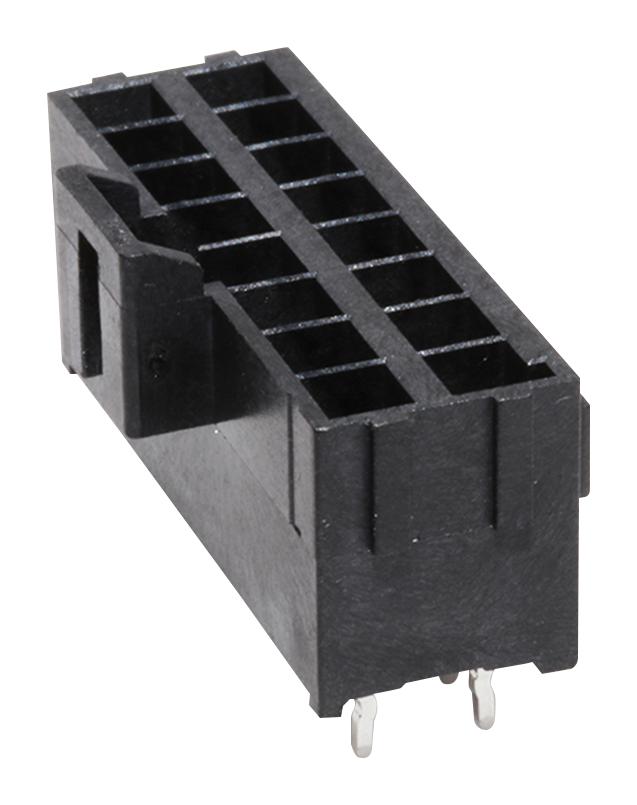

MOLEX 1722981116 Ultra-Fit Power Connector
The MOLEX 172298-1116 is a robust Ultra-Fit vertical header connector designed for power transmission in wire-to-board applications. It accommodates 16 circuits with a 3.50mm pitch and utilizes tin plating over nickel for enhanced durability and corrosion resistance. The connector is glow-wire capable, meeting stringent safety standards, and features a dual-row design with kinked pins for ease of use. Its robust construction and reliable performance make it ideal for various industrial and commercial applications requiring secure and efficient power connections.
MOLEX 1722981116 Ultra-Fit Power Connector Specifications:
- overview: Ultra-Fit Power Connectors
- product_family: PCB Headers
- application: Power, Wire-to-Board
- circuits_loaded: 16
- circuits_maximum: 16
- color_resin: Black
- durability_mating_cycles: 25
- first_mate_last_break: No
- flammability: 94V-0
- glow_wire_capable: Yes
- guide_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_metal: Copper Alloy
- material_plating_mating: Tin over Nickel
- material_plating_termination: Tin over Nickel
- material_resin: Liquid Crystal Polymer
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length: 3.20mm
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm
- packaging_type: Tray
- pitch_mating_interface: 3.50mm
- pitch_termination_interface: 3.50mm
- plating_min_mating: 1.524µm
- plating_min_termination: 1.524µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Fully
- surface_mount_compatible: Yes
- temperature_range_operating: -40° to +120°C
- termination_interface_style: Through Hole - Kinked Pin
- current_maximum_per_contact: 12.0A
- voltage_maximum: 400V AC (RMS)/DC
- max_process_temp_duration: 090 seconds
- max_cycles_process_temp: 002
- process_temp_max_celsius: 260°C
