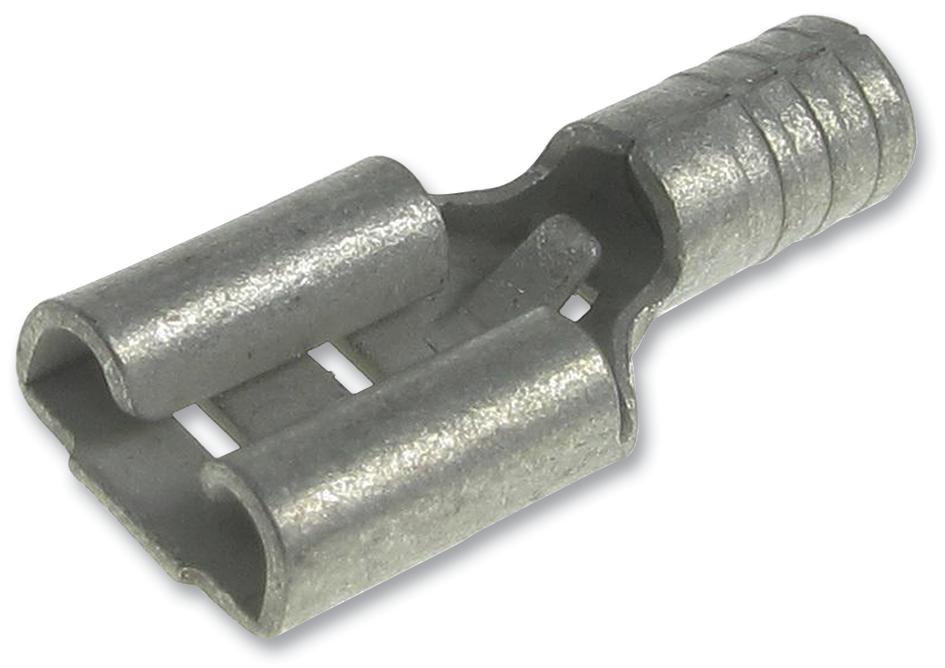

MOLEX 190160040 Quick Disconnect Terminal
Krimptite Quick Disconnect female terminals are designed for 14-16 AWG wire, featuring a butted seam construction for reliable connection. These insulated, tin-plated brass terminals are suitable for various electrical applications, ensuring a secure lock to mating parts. They conform to RoHS standards and are CSA and UL certified for safety. The terminals have a 4.75 x 0.81mm tab size, with a maximum voltage of 600V, operating within a temperature range of -55°C to +105°C, making them ideal for industrial wiring and electronic projects.
MOLEX 190160040 Quick Disconnect Terminal Specifications:
- Wire Size: 14-16 AWG (1.30-2.00 mm) wire
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Insulation: Insulated
- Tab Width: 4.75mm
- Tab Thickness: 0.81mm
- Dimensions: 4.75 x 0.81mm tab size
- Voltage - Maximum: 600V
- Operating Temperature Range: -55°C to +105°C
- Certification: UL Listed, CSA Certified
- RoHS Compliant, Halogen-Free, REACH SVHC Not Contained
- Packaging: Bag
- Gender: Female
- Connection: Lock to Mating Part: Yes
- Seam: Butted Seam
Buy the Molex Series 19016 Female Quick Disconnect: 190160040
Enhance your electrical wiring with Molex Series 19016 female quick-disconnect terminals. Crafted from tin-plated brass, these insulated, UL and CSA certified connectors support 14-16 AWG wire, offering durability and reliable performance. They feature a 4.75 x 0.81mm tab size, withstand voltages up to 600V, and operate safely within -55°C to +105°C. Perfect for industrial and electronic applications, these terminals ensure secure, efficient connections, boosting your project's safety and reliability. Order online now for fast delivery and competitive pricing.
Order your Molex Series 19016 female quick-disconnect terminal today and ensure reliable, safe electrical connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 190160040?
You can click on the BUY or RFQ button to purchase 190160040 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190160040?
You can download the 190160040 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190160040?
MOLEX
