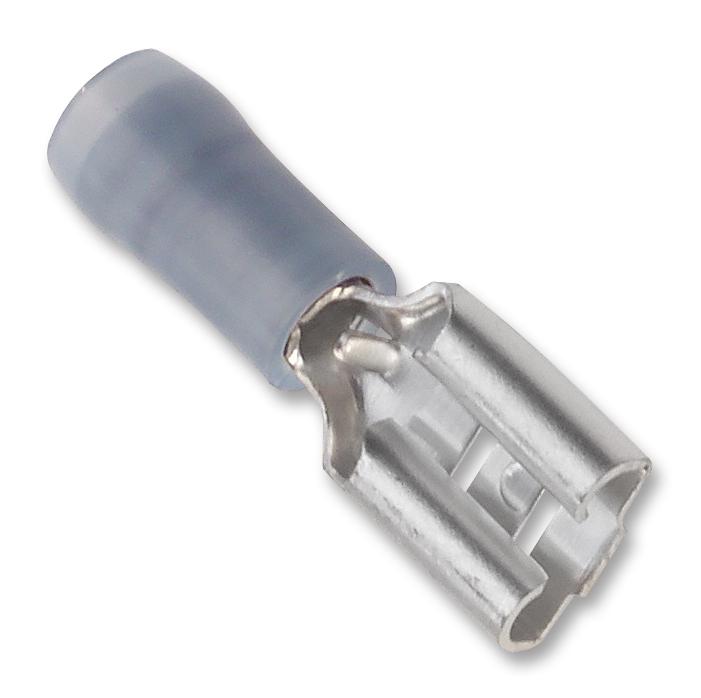

MOLEX 190190025 Quick-Disconnect Terminal
The Avikrimp Quick-Disconnect Female terminal is designed for 14-16 AWG wire, featuring a box and tab design with 2.79 x 0.81mm dimensions. Made from nylon with tin plating, it offers reliable crimping, excellent electrical performance, and is CSA and UL certified. Operating within -65°C to +105°C temperature range, it supports 300V voltage capacity. This insulated terminal ensures secure mating with a lock to the mating part and is suitable for quick and efficient connection assemblies in industrial and electronic applications. Its compact, blue-insulated design facilitates easy identification and handling.
MOLEX 190190025 Quick-Disconnect Terminal Specifications:
- Wire Range: 14-16 AWG (1.30-2.00 mm2)
- Insulation Material: Nylon (PA)
- Material - Metal: Brass
- Material - Plating Mating and Termination: Tin
- Dimensions: 2.79mm (width) x 0.81mm (height)
- Tab Thickness: 0.81mm
- Tab Width: 2.79mm
- Voltage - Maximum: 300V
- Temperature Range - Operating: -65°C to +105°C
- Flammability: 94V-2
- Gender: Female
- Color - Resin: Blue
- Lock to Mating Part: Yes
- Packaging Type: Bag
- Certifications: CSA, UL
- RoHS and REACH Compliant, Low-Halogen
Buy the Molex Series Quick-Disconnect: 190190025
Experience dependable electrical connections with the Molex Quick-Disconnect Terminal designed for 14-16 AWG wires. Featuring durable tin plating, nylon insulation, and CSA and UL certification, it ensures safety, reliability, and ease of use. Operating within a wide temperature range from -65°C to +105°C, it supports up to 300V, making it ideal for industrial and electronic applications. Its compact blue insulation enables quick identification, while its secure locking mechanism guarantees safe, quick, and efficient mating for your electrical assemblies.
Get Molex 190190025 today—built for reliable connections and high-temperature performance in industrial electronics.
Frequently Asked Questions
Where can I buy MOLEX 190190025?
You can click on the BUY or RFQ button to purchase 190190025 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190190025?
You can download the 190190025 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190190025?
MOLEX
