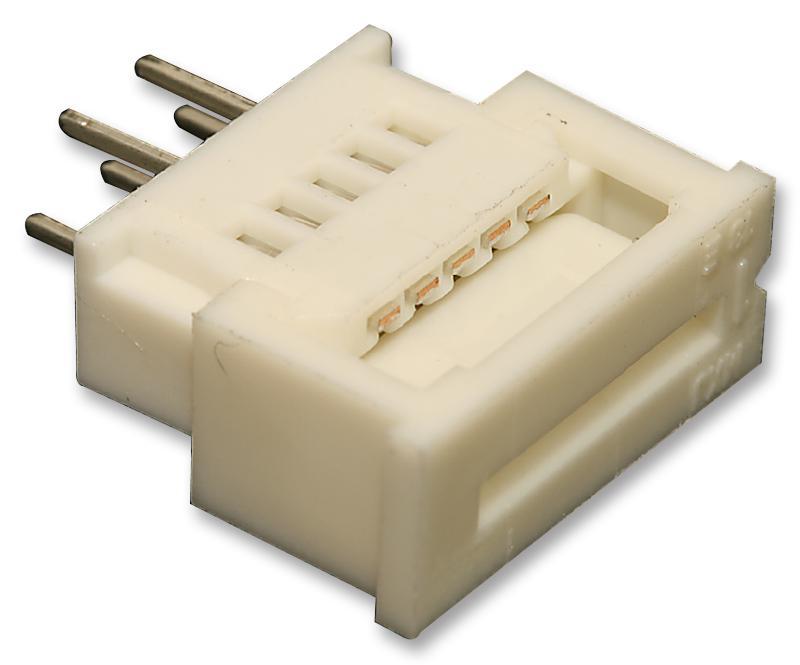

MOLEX 39532055 FFC FPC Connector
This is a 1.25mm pitch easy-on FFC/FPC connector designed for through-hole mounting, with a vertical orientation and ZIF actuator. It features 5 circuits, made of phosphor bronze with tin-bismuth plating, suitable for low-profile applications with a mated height of 7.50mm. This connector supports currents up to 1.0A per contact, voltage up to 200V, and operates within a temperature range of -20°C to +80°C. It complies with RoHS standards and is ideal for compact electronic assembly, offering reliable, easy-to-attach connections in various electronic devices.
MOLEX 39532055 FFC FPC Connector Specifications:
- Pitch - Mating Interface: 1.25mm
- Circuits (Loaded): 5
- Circuits (Maximum): 5
- Color - Resin: Natural
- Actuator Type: Slider
- Durability: Not specified
- Flammability: 94V-0
- Mated Height: 7.50mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Material - Resin: Polyester
- Net Weight: 599.900 mg
- Orientation: Vertical
- PCB Tail Length: 3.50mm
- Temperature Range - Operating: -20°C to +80°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 200V
- Packaging Type: Tray
- RoHS Compliance: Yes
- UL Certification: Yes
Buy the Molex 39532055 – Reliable FFC FPC Connector for Industrial Applications
Order the Molex 39532055 FFC FPC connector online today for high-quality, reliable connections in electronic devices. This 1.25mm pitch, through-hole, ZIF connector with five circuits is ideal for compact assemblies. Made from phosphor bronze with tin-bismuth plating, it ensures excellent durability and conductivity. Supporting up to 1.0A per contact and 200V, it is RoHS compliant and suitable for a wide operating temperature range from -20°C to +80°C. Buy online now for fast delivery and trusted performance.
Get Molex 39532055 today—built for precision, durability, and reliable electronic connections in compact designs.
Frequently Asked Questions
Where can I buy MOLEX 39532055?
You can click on the BUY or RFQ button to purchase 39532055 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 39532055?
You can download the 39532055 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 39532055?
MOLEX
