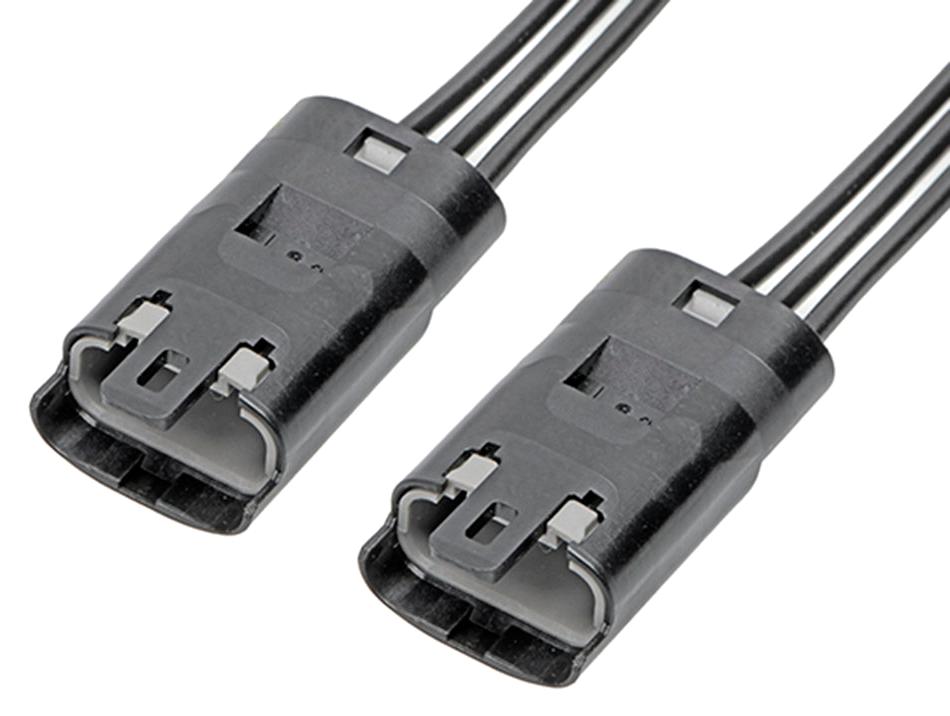

MOLEX 2153121033 Miniature Waterproof Connector
The Mizu-P25 off-the-shelf cable assemblies feature a 2.50mm pitch with male-to-male connectors, supporting up to 4A current and rated IP67 for dust and water resistance. Designed for automotive, industrial automation, and consumer applications, these waterproof connectors include a positive locking mechanism, integral seal stopper for enhanced sealing, and spring-beam terminals suited for high vibration environments. Made with polyester housings, phosphor bronze contacts, and tin plating, they ensure reliable, secure connections in harsh conditions, and are UL certified for quality and safety.
MOLEX 2153121033 Miniature Waterproof Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 3
- Current: 4A
- Voltage: 60V
- Cable Length: 600mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Housing Material: Polyester
- Color - Resin: Black
- Locking Mechanism: Positive Lock
- Ingress Protection: IP67
- Temperature Range: Not specified in data
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 20, 22
- Maximum Voltage: 60V
- Certifications: UL Listed
Buy the Molex 2153121033 – Reliable Waterproof Connector for Industrial Applications
Order the Molex Miniature Waterproof Connector designed with a 2.50mm pitch and IP67 rating for dust and water resistance. Support your industrial, automotive, or consumer projects with a durable, reliable, sealed connection supporting up to 4A current and rated for 60V. Its positive locking mechanism, high vibration spring-beam terminals, and sealed design ensure secure connections even in challenging environments. Made with polyester housings, phosphor bronze contacts, and tin plating, these assemblies meet UL standards, guaranteeing safety and performance. Convenient online purchase ensures quick delivery and trusted quality for your applications.
Buy Molex 2153121033 now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy MOLEX 2153121033?
You can click on the BUY or RFQ button to purchase 2153121033 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153121033?
You can download the 2153121033 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153121033?
MOLEX
