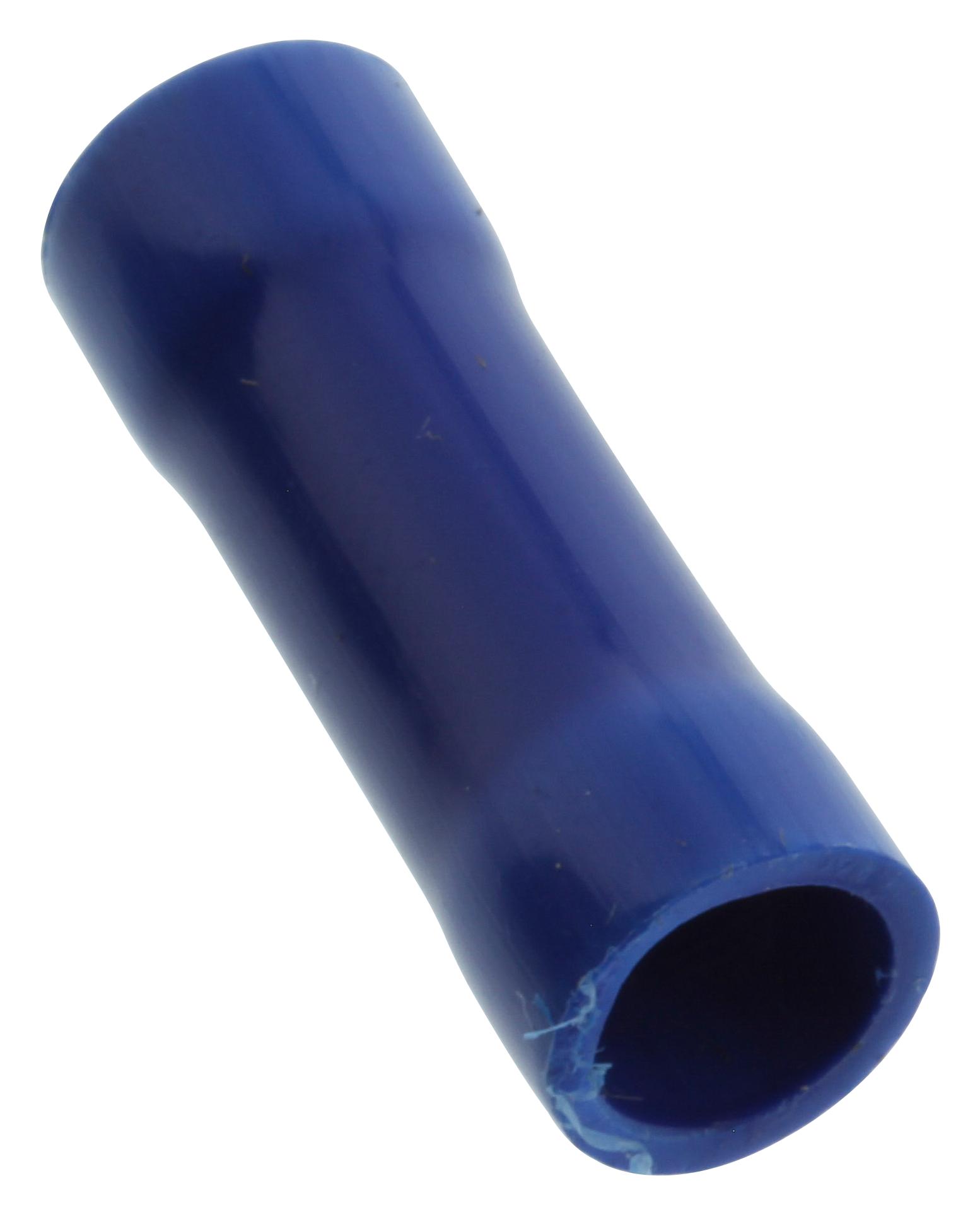

MOLEX 192060005 InsulKrimp Parallel Splice
The MOLEX 19206-0005 InsulKrimp Parallel Splice is a robust solution for joining two lengths of 14-16 AWG wire. Constructed with a copper core and a durable PVC insulation, this splice ensures a secure and long-lasting connection. Its closed barrel design provides excellent crimp retention and electrical conductivity. Certified by CSA and UL, this splice is suitable for a wide range of applications including automotive, appliance, and industrial wiring.
MOLEX 192060005 InsulKrimp Parallel Splice Specifications:
- status: Active
- overview: Splices
- description: InsulKrimp Parallel Splice for 14-16 AWG Wire
- product_family: Splices
- series: 19206
- crimp_quality_equipment: Yes
- mil_spec: N/A
- product_name_short: InsulKrimp, Parallel
- upc: 800753052888
- barrel_type: Closed
- color_resin: Blue
- flammability: 94V-0
- insulation: PVC
- material_metal: Copper
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: PVC
- net_weight_g: 0.838
- packaging_type: Bag
- wire_insulation_diameter_max_mm: 4.40
- wire_size_awg: 14, 16
- engineering_number: BS-V-304X
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- application_tooling_premium_grade_hand_crimp_tool: 640010100
- application_tooling_crimp_head_for_at200: 640050100
