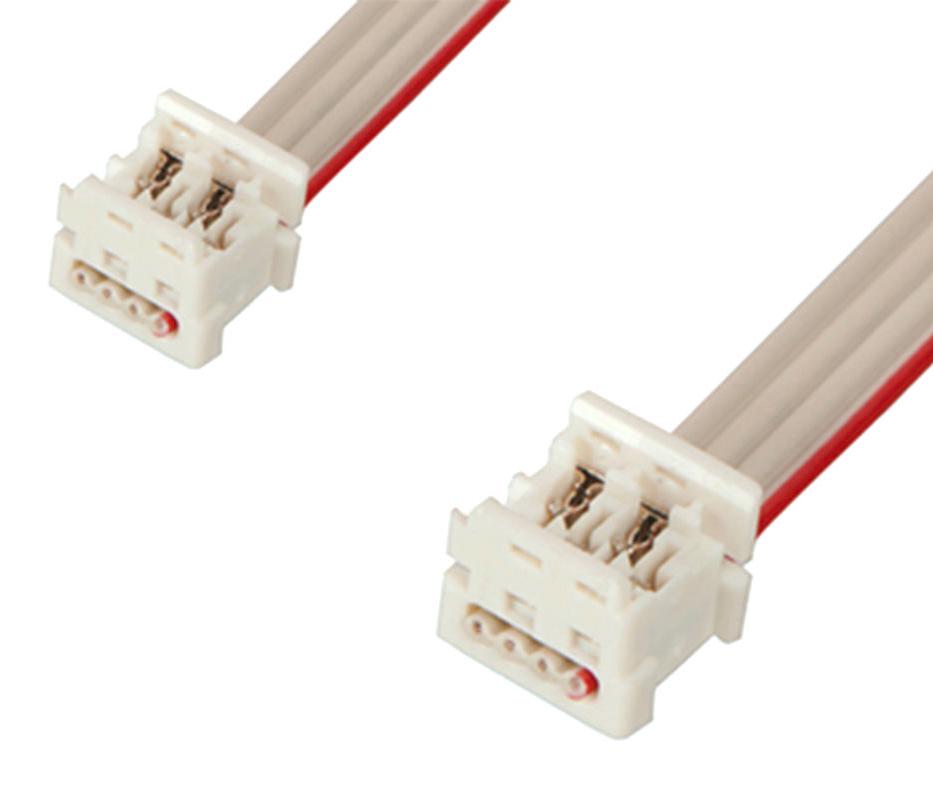

MOLEX 923150424 Ribbon Cable Assembly
The Picoflex ribbon cable assemblies are versatile, featuring polarized connectors, secure one-piece housings, and dual-beam contacts for reliable, high-quality connections. Designed for early-stage project development, these assemblies include visual inspection windows, locking final seat slots, and optional gold plating to enhance durability in vibration-heavy environments. Suitable for consumer electronics, industrial automation, medical devices, and energy applications, they support a maximum voltage of 250V, a current of 1.2A, and operate between -40°C to +105°C. Compatible with Picoflex PF-50 headers, these assemblies promote easy assembly and long-term reliability.
MOLEX 923150424 Ribbon Cable Assembly Specifications:
- Cable Length: 240.00mm
- Circuits: 4
- Color - Resin: Natural
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 1.27mm
- Wire Size AWG: 28
- Wire/Cable Type: PVC, Ribbon Cable
- Current - Maximum per Contact: 1.2A
- Voltage - Maximum: 250V
- Operating Temperature Range: -40°C to +105°C
- Number of Mating Cycles: 30
- Pitch - Mating Interface: 1.27mm
- Housing Material: Polyester
- Certifications: UL Listed, CSA Certified
- Connector Type: Picoflex Ribbon-Cable Assemblies
- Header Compatibility: Picoflex PF-50
- Locking Mechanism: Final seat slots
- Features: Visual inspection windows, polarization, dual-beam contacts with four points of contact, optional gold plating
- Application: Consumer electronics, industrial automation, medical devices, energy
Buy the Buy Molex Ribbon Cable Assembly Part Number 923150424 Online
Purchase the Molex Picoflex ribbon cable assembly online today and enhance your electronic designs with highly reliable, secure connections. Featuring polarized connectors, locking slots, and verified stability, this assembly supports up to 250V and 1.2A current, suitable for industrial, medical, and consumer electronics. Its durable polyester housing and gold-plated contacts ensure longevity, even in demanding environments. With easy-to-assemble design, clear inspection windows, and high-quality materials, this product offers excellent value and proven performance for your projects. Order now to ensure timely delivery and professional quality.
Buy Molex 92315 ribbon cable assembly now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 923150424?
You can click on the BUY or RFQ button to purchase 923150424 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 923150424?
You can download the 923150424 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 923150424?
MOLEX
