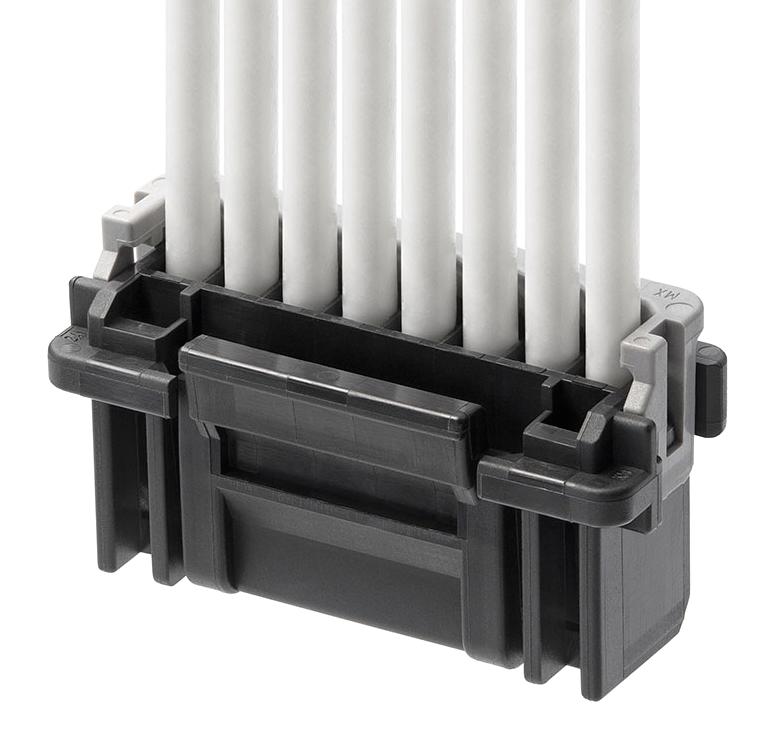

MOLEX 2127242051 Micro-One Wire-to-Board Connector
The MOLEX 212724-2051 is a receptacle housing within the Micro-One wire-to-board connector system. Designed for power applications, this housing offers a 2.00mm pitch and accommodates 5 circuits. It's glow-wire capable, indicating suitability for certain electrical safety standards. Constructed from polyamide resin, the housing provides durability and reliable connection. It is RoHS compliant and part of the 212724 series, mating with components like the Micro-One TPA Retainer and various Micro-One headers and terminals.
MOLEX 2127242051 Micro-One Wire-to-Board Connector Specifications:
- status: Active
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Receptacle Housing, 2.00mm Pitch, Glow-Wire Capable, 5 Circuits
- product_family: Crimp Housings
- series: 212724
- application: Power, Wire-to-Board
- circuits_maximum: 5
- color: Resin Black
- gender: Female
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material: Resin Polyamide
- net_weight: 376.610/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: No
- stackable: No
- temperature_range_operating: -40° to +105°C
- upc: 193264613830
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: Micro-One TPA Retainer 212725, MicroOne Vertical Header 217063, Micro-One Right-Angle Header 217064
- use_with: Micro-One Female Crimp Terminal 56134
