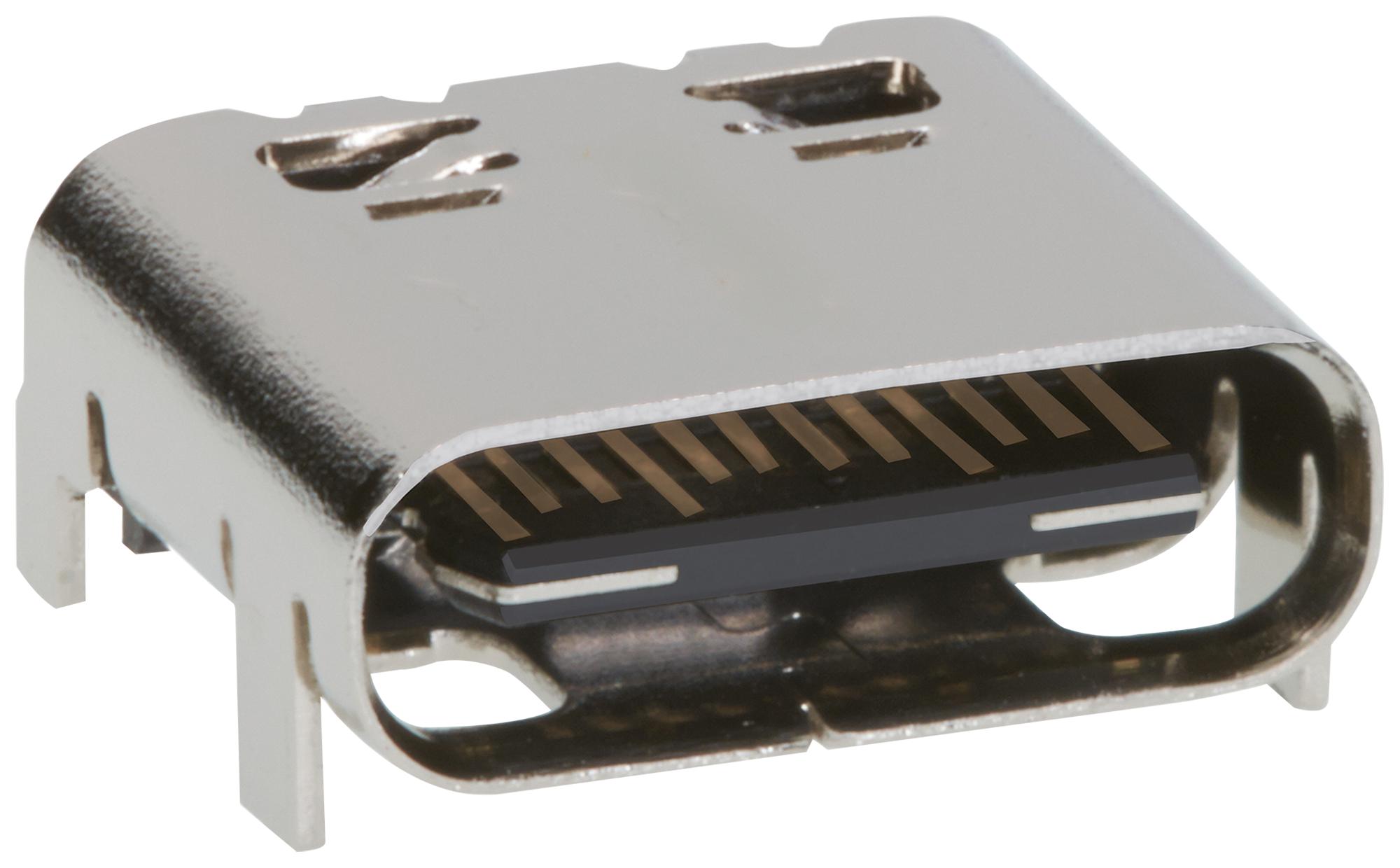

MOLEX 2012670005 USB Type C Connector
The USB 3.1 Type C shielded I/O receptacle is a right-angle, surface-mount connector with gold-plated contacts, designed for reliable, high-speed data transfer. Featuring a durable design with up to 20,000 mating cycles, it supports a maximum voltage of 30V AC/DC. Constructed with copper alloy and high-temperature thermoplastic, this connector provides robust electrical and mechanical performance. Suitable for wire-to-board applications, it offers a 0.50mm pitch interface, polarized to the PCB, and is RoHS compliant, ensuring safety and environmental standards are met.
MOLEX 2012670005 USB Type C Connector Specifications:
- Circuits: 24 (max)
- Color: Black
- Durability: 20,000 mating cycles
- Material - Metal: Copper Alloy
- Material - Plating: Gold
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.686g
- Orientation: Right Angle
- PCB Thickness - Recommended: 1.60mm
- Packaging: Embossed Tape on Reel
- Pitch - Mating and Termination Interface: 0.50mm
- Operating Temperature: -40°C to +105°C
- Maximum Voltage: 30V AC/DC
- Shield: Full Shield
- Lock to Mating Part: Yes
- Surface Mount Compatible: Yes
- Ports: 1
- Reference Drawing Number: 2012670005-000
Buy the Molex 2012670005 – Reliable USB Type C Shielded Receptacle for Industrial Applications
Discover the Molex USB Type C connector, offering secure, high-speed data transfer with full shielding and gold-plated contacts. This surface-mount, right-angle design ensures reliable connections with up to 20,000 mating cycles. Designed for broad industrial applications, it supports a maximum voltage of 30V AC/DC and operates efficiently from -40°C to +105°C. Constructed with durable materials like copper alloy and high-temperature thermoplastic, this connector guarantees longevity. Easily integrate this RoHS-compliant, robust component into your electronic systems by purchasing online today for seamless, dependable performance.
Get Molex 2012670005 today—built for durable, high-performance data connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy MOLEX 2012670005?
You can click on the BUY or RFQ button to purchase 2012670005 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2012670005?
You can download the 2012670005 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2012670005?
MOLEX
