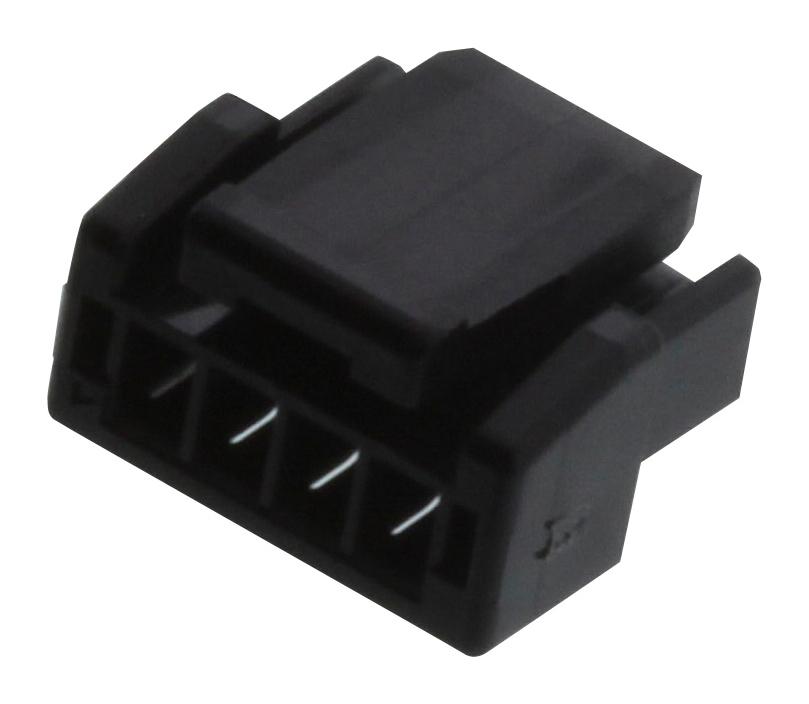

MOLEX 2045320401 Receptacle Housing
The Micro-Lock Plus Receptacle Housing is a compact, low-halogen wire-to-board connector system featuring a 1.25mm pitch and single row configuration. It supports up to four circuits and includes a positive lock mechanism for secure connections. Made from durable polyester resin, this black receptacle is designed for applications requiring UL and CSA certification, operating within a temperature range of -40°C to +105°C. The connector ensures reliable mating with Micro-Lock Plus headers and terminals, making it ideal for compact electronic and electrical assemblies requiring high reliability and safety standards.
MOLEX 2045320401 Receptacle Housing Specifications:
- Circuits (maximum): 4
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: No
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Net Weight: 96.170 mg
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 1.25mm
- Pitch - Termination Interface: 1.25mm
- Temperature Range - Operating: -40°C to +105°C
- Agency Certification: UL, CSA
- Halogen-Free: Yes
- RoHS Compliant: Yes
Buy the Molex Series Micro-Lock Plus Receptacle Housing: 2045320401
Purchase the Molex Micro-Lock Plus Receptacle Housing 2045320401 online today and enhance your electronic assembly projects with a high-quality, UL and CSA certified connector. Designed for durability and reliable mating, this low-halogen, 1.25mm pitch, single row connector ensures secure connections in tight spaces. Its robust polyester resin construction withstands harsh environments, operating reliably from -40°C to +105°C. Perfect for electronic device manufacturers seeking high performance, safety compliance, and ease of installation in various industrial and consumer applications.
Buy Molex 2045320401 now and experience unmatched reliability and performance in compact wire-to-board connections.
Frequently Asked Questions
Where can I buy MOLEX 2045320401?
You can click on the BUY or RFQ button to purchase 2045320401 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2045320401?
You can download the 2045320401 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2045320401?
MOLEX
