MOLEX 2141140001 Power and Signal Connector
Extreme Guardian HD power connectors provide configurable hybrid power and signal solutions with high current density in a compact, low-profile design. They feature a resilient contact system capable of handling voltages up to 125V, supporting both AC and DC high-voltage applications with minimal voltage drop and power loss. Gold-plated contacts ensure low interface resistance, while the vertical receptacle assembly with guide receivers enables precise PCB alignment. With 30 signal and 8 power circuits, copper alloy contacts, and a durable LCP housing, these connectors operate up to 125°C, supporting high current loads of up to 80A per blade, ideal for telecommunication, networking, and industrial equipment.
MOLEX 2141140001 Power and Signal Connector Specifications:
- Number of Circuits: 8 Power, 30 Signal
- Current per Contact: Up to 80A
- Voltage Maximum: 125V
- Operating Temperature Range: -40°C to +105°C
- Contact Material: High Conductivity Copper
- Plating: Gold
- Housing Material: Liquid Crystal Polymer
- Mating Cycles: Up to 200
- Dimensions: Centerline spacing 5.15mm, PCB thickness 1.58mm
- Durability: Mating cycles up to 200
- RoHS Compliance: Yes
- UL and CSA Certified
- Plating Minimum - Mating: 0.762 μm
- Plating Minimum - Termination: 2.540 μm

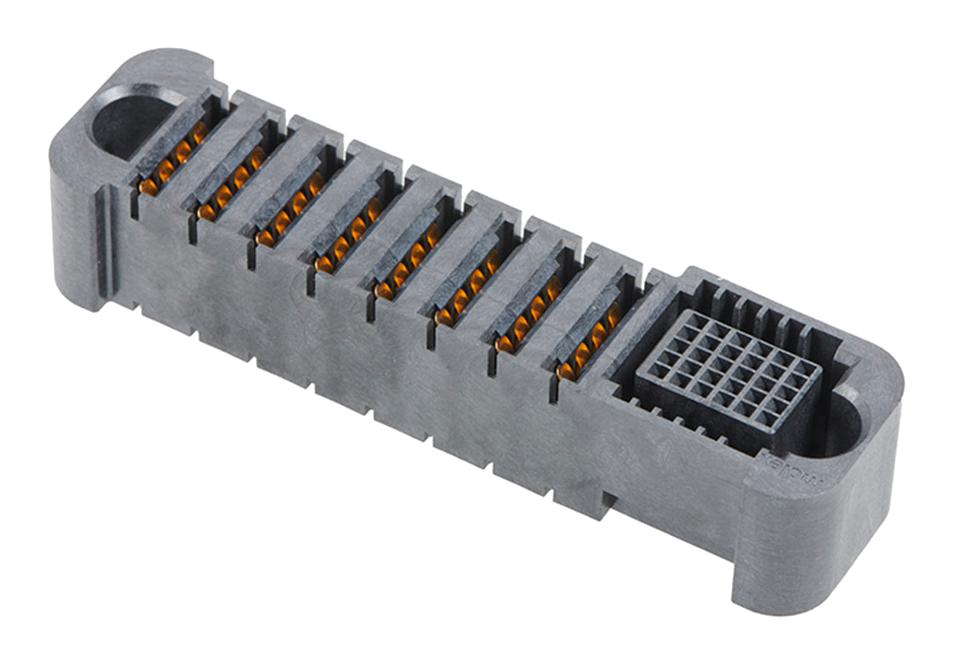

Buy the Molex Series Extreme Guardian HD: 2141140001
Discover the Molex Extreme Guardian HD power connector, featuring configurable hybrid power and signal circuits. Designed for high current density in a compact form, it offers reliable operation up to 125°C with a maximum of 80A per blade. The connector's gold-plated contacts ensure low resistance, while its vertical receptacle with guide receivers provides precise PCB alignment. Suitable for telecommunications, industrial, and data processing equipment, this connector supports 200 mating cycles and certified safety standards, making it an excellent choice for demanding electronic applications.
Get Molex 2141140001 today—built for high current capacity and reliable PCB connections.
