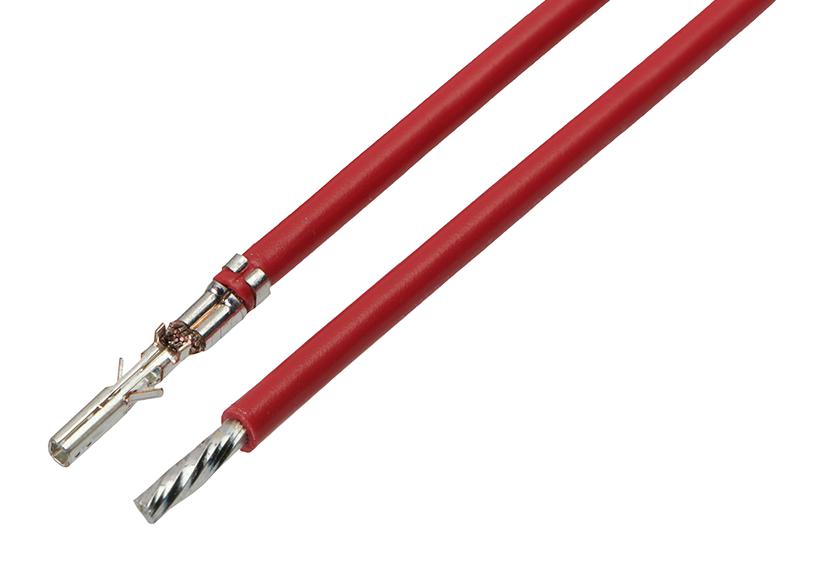

MOLEX 2147612123 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 2147612123 is a pre-crimped lead connector designed for power, wire-to-board, and wire-to-wire applications. This Micro-Fit 3.0 connector offers a convenient, ready-to-use solution with a female-to-pigtail configuration. It is tin-plated for reliable electrical contact and features a red resin color for easy identification. The connector is suitable for applications requiring a robust and efficient power connection, and is compliant with RoHS standards. It is designed to be used with Micro-Fit 3.0 receptacle housings and BMI panel mount receptacle housings.
MOLEX 2147612123 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- Series: 214761
- Application: Power, Wire-to-Board, Wire-to-Wire
- Assembly Configuration: Pre-crimped Lead Only
- Connector to Connector: Micro-Fit 3.0 Crimp Terminals
- Cable Length: 225.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Net Weight: 2.594/g
- Plating min - Mating: 1.016µm
- Plating min - Termination: 1.016µm
- Single Ended: Yes
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 18
- Wire/Cable Type: UL 10002
- Current - Maximum per Contact: 8.5A
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
- RoHS Phthalates: Not Contained
