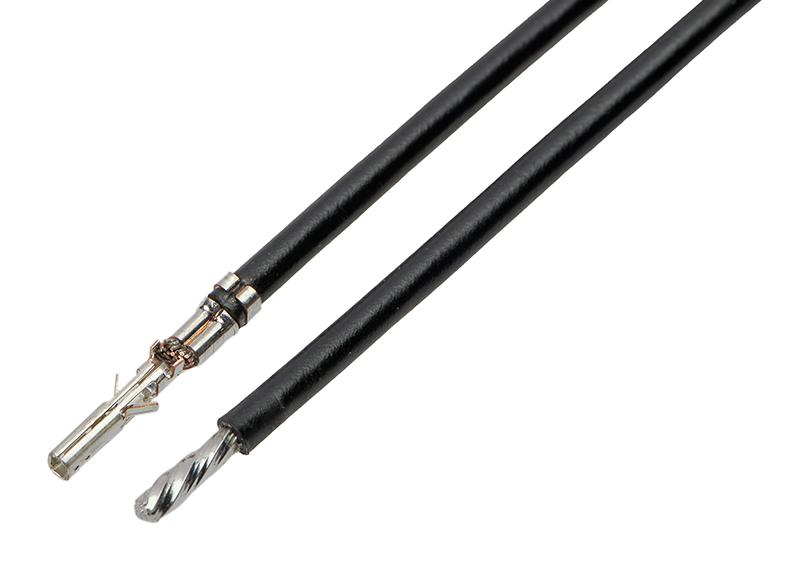

MOLEX 2147611201 Micro-Fit 3.0 Female-to-Pigtail
The MOLEX 214761-1201 is a pre-crimped lead assembly designed for versatile connectivity solutions. This Micro-Fit 3.0 female-to-pigtail connector provides a convenient and reliable connection for power and signal transmission in wire-to-board and wire-to-wire applications. The gold plating on the mating contacts ensures excellent conductivity and durability, while the tin plating on the termination contacts facilitates secure crimping. Its compact design and pre-crimped nature simplify integration into various industrial and commercial systems.
MOLEX 2147611201 Micro-Fit 3.0 Female-to-Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- series: 214761
- application: Power, Wire-to-Board, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- crimp_terminals: Micro-Fit 3.0 Crimp Terminals
- cable_length: 75.00mm
- wire_size_awg: 22
- wire_insulation_diameter_max: 1.85mm
- circuits_loaded: 1
- color: Black (Resin)
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- plating_min_mating: 0.762µm
- plating_min_termination: 2.540µm
- single_ended: Yes
- termination_interface_style: Crimp or Compression
- current_max_per_contact: 8.5A
- upc: 193264574278
- net_weight: 0.410/g
- wire_type: UL 10002
- reach_svhc: Not Contained Per - D(2020)4578-DC (25 June 2020)
