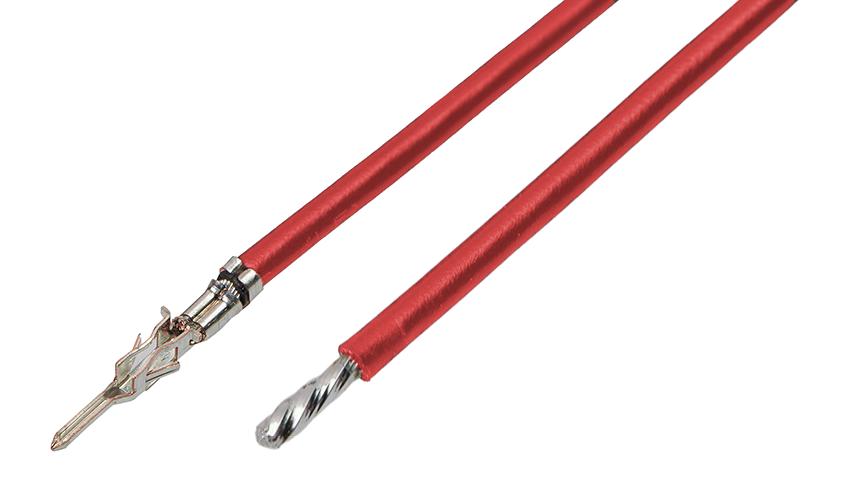

MOLEX 2147632121 Micro-Fit Power Connector
The Micro-Fit 3.0 Male-to-Pigtail is a pre-crimped lead with a length of 75 mm, designed for power and wire-to-wire applications. Crafted from phonograph bronze with tin plating, it supports 18 AWG wire and features a crimp or compression termination interface. Suitable for connecting Micro-Fit 3.0 plug housings, this pigtail provides reliable electrical performance with a maximum current of 8.5A per contact. It complies with RoHS and China RoHS standards, making it ideal for industrial, electronic, and power applications requiring durable and high-quality wire leads.
MOLEX 2147632121 Micro-Fit Power Connector Specifications:
- Length: 75.00mm
- Wire Size: 18 AWG
- Material - Metal: Phosphor Bronze
- Plating - Mating and Termination: Tin
- Current - Maximum per Contact: 8.5A
- Wire Insulation Diameter: 1.85mm max.
- Termination Interface: Crimp or Compression
- Color - Resin: Red
- Gender: Male-Pigtail
- Applicable Series: Micro-Fit 3.0
- Supported Housings: Micro-Fit 3.0 Plug and BMI Plug housings
- RoHS Compliant: Yes
- China RoHS: Compliant
- UL Certification: UL 10002
- Reference Drawing Number: 2147631121-000
Buy the Molex 2147632121 – Reliable Pigtail for Industrial Applications
Experience the convenience of ordering the Molex Micro-Fit Power Connector Series2147632121 online. This pre-crimped 75mm male-to-pigtail provides reliable connection for industrial, electronic, and power applications. Crafted from durable tin-plated phosphor bronze, it supports 18 AWG wire and features a crimp or compression termination for secure jacks. RoHS compliant, UL certified, and designed to meet high-quality standards, this pigtail ensures efficient power transfer with a maximum current of 8.5A per contact. Perfect for assembly and repair projects requiring durable, high-performance leads.
Order your Molex Series214763 pigtail today and ensure secure, high-quality power connections for industrial and electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2147632121?
You can click on the BUY or RFQ button to purchase 2147632121 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147632121?
You can download the 2147632121 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147632121?
MOLEX
