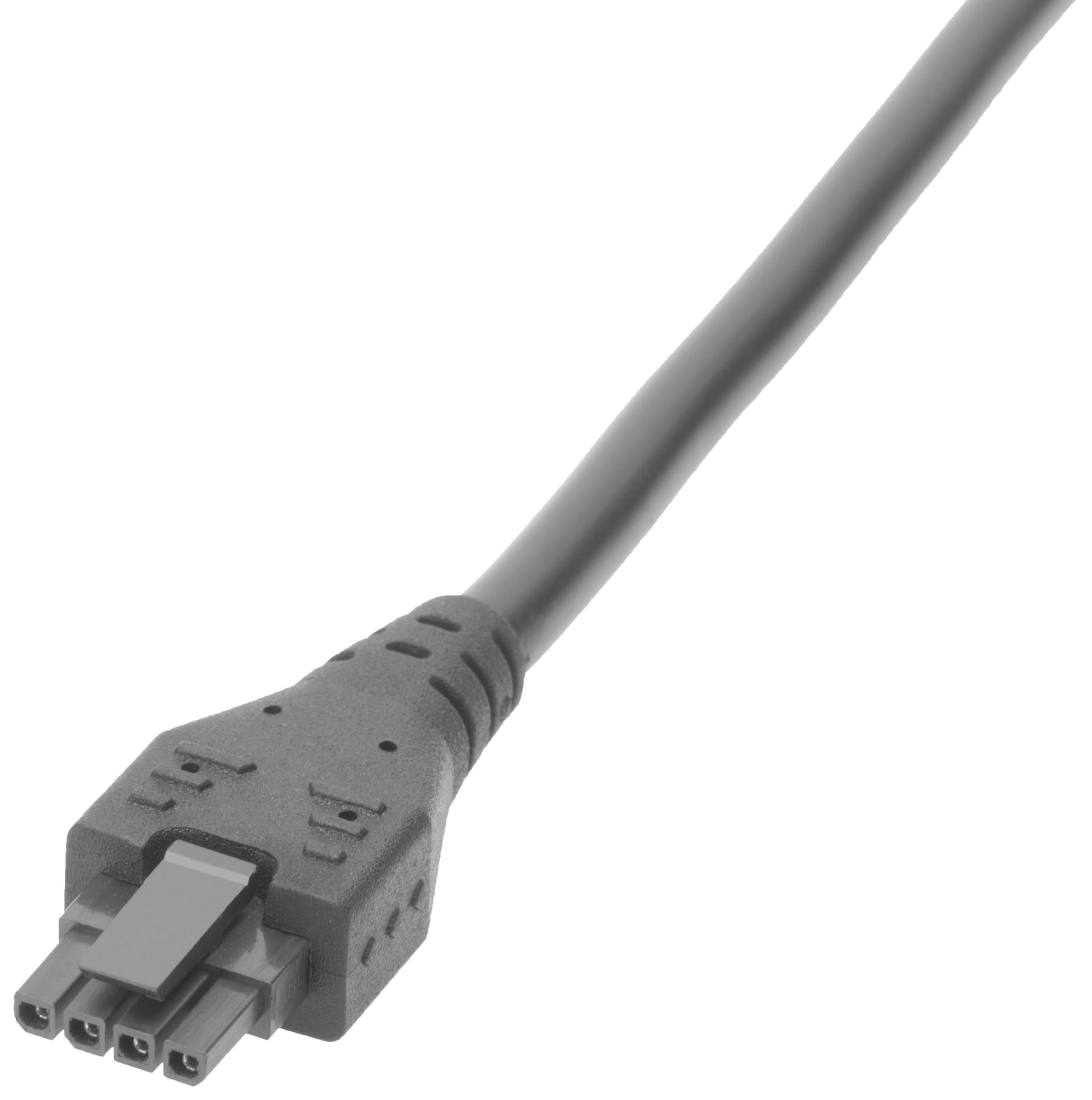

MOLEX 2147700430 Micro-Fit 3.0 Cable Assembly
The Micro-Fit 3.0 female-to-female cable assembly is a durable, overmolded connector designed for reliable signal transfer in consumer and data applications. It features a 3.0-meter length, black nylon housing, and phosphor bronze contacts with tin plating for corrosion resistance. Capable of handling up to 8.5A per contact and 300V, it offers excellent performance within -20°C to +80°C temperatures. Its positive latch ensures secure mating, while UL 2464 rated wire provides robust, flame-retardant connections suitable for various electronic systems.
MOLEX 2147700430 Micro-Fit 3.0 Cable Assembly Specifications:
- Cable Length: 3.0m
- Number of Circuits: 4
- Housing Material: Black nylon
- Contact Material: Phosphor bronze
- Plating: Tin
- Rated Voltage: 300V AC/DC
- Maximum Current per Contact: 8.5A
- Temperature Range: -20°C to +80°C
- Flammability: UL 94V-0
- Wire/Cable Type: UL 2464
- Termination Style: Crimp or compression
- Wire Size: 20 AWG
- Number of Mating Cycles: 30
- Gender: Female-Female
- Assembly Type: Overmolded with strain relief
- Mates With: Micro-Fit 3.0 plug housings, headers, cable assemblies
- Certifications: UL Listed
Buy the Molex 214770 U+2013 Reliable Micro-Fit 3.0 Female-to-Female Cable Assembly for Industrial Applications
Purchase the Molex Micro-Fit 3.0 Female-to-Female Cable Assembly online today. Designed for durability and reliable connection in consumer and industrial electronics. Featuring a 3-meter black nylon housing, phosphor bronze contacts with tin plating, and UL 2464 rated wire, this assembly withstands temperatures from -20°C to +80°C. Secure positive latch ensures a safe connection, while overmolded strain relief protects against mechanical stress. It supports up to 8.5A per contact and 300V, making it ideal for power and data applications. Order now to enhance your system’s reliability!
Order your Molex Series214770 Micro-Fit 3.0 Female-to-Female Cable Assembly today and ensure your electronic projects have the dependable, rugged connectivity they need for optimal performance.
Frequently Asked Questions
Where can I buy MOLEX 2147700430?
You can click on the BUY or RFQ button to purchase 2147700430 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147700430?
You can download the 2147700430 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147700430?
MOLEX
