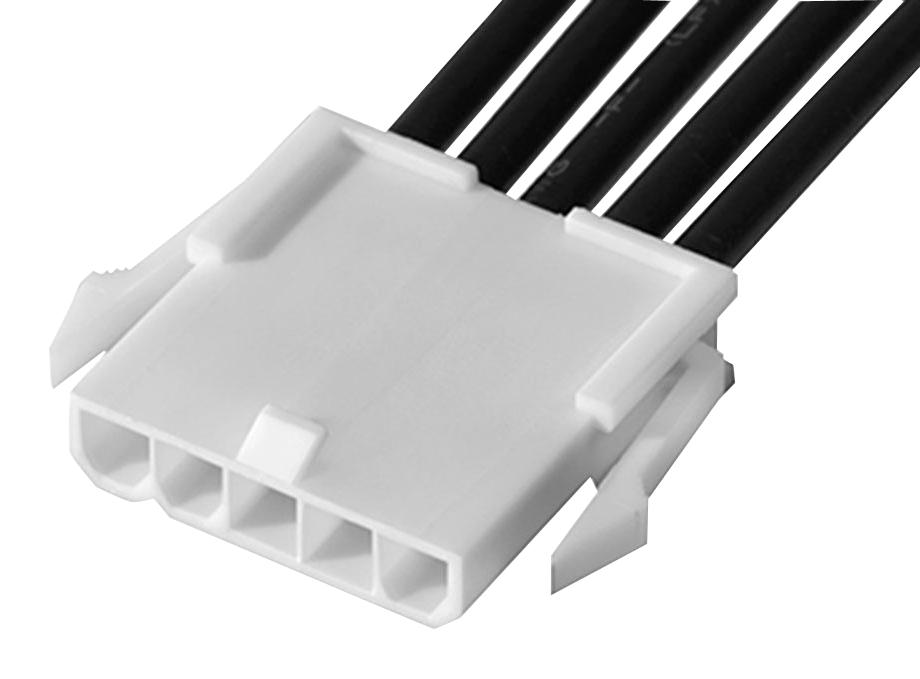

MOLEX 2153201051 Mini-Fit Jr. Power Connector
This Mini-Fit Jr. Female-to-Female Off-the-Shelf Cable Assembly features a 150mm length, black color, and tin-plated contacts. Designed for power applications, it connects two Mini-Fit Jr. connectors, providing a reliable 5-circuit connection. Suitable for wire-to-wire and connector-to-connector connections, it supports a maximum current of 9A per contact and a voltage of 600V. The assembly uses crimp or compression termination with a wire size ranging from 16 AWG, and the nylon insulator ensures durability. It is RoHS and REACH compliant, making it an environmentally friendly choice for power and electrical systems.
MOLEX 2153201051 Mini-Fit Jr. Power Connector Specifications:
- Cable Length: 150.00mm
- Circuits (Loaded): 5
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Termination Interface: Style: Crimp or Compression
- Physical Type: Discrete Wire Assembly
- Connector to Connector configuration
- Net Weight: 22.055g
Buy the Molex Series Mini-Fit Jr. Power Connectors: 2153201051
Experience reliable power connectivity with the Mini-Fit Jr. Power Connector assembly, designed for high-performance applications. Featuring a 150mm cable, five circuits, and tin-plated contacts, this assembly ensures a secure and durable connection. It supports up to 9A per contact at 600V, making it suitable for various electrical systems. Constructed with high-quality nylon insulation and brass contacts, it is RoHS and REACH compliant. Perfect for wire-to-wire and connector-to-connector applications, this assembly offers long-term durability and safety for your electronic setups.
Get Molex 2153201051 today—built for power reliability and long-lasting durability.
Frequently Asked Questions
Where can I buy MOLEX 2153201051?
You can click on the BUY or RFQ button to purchase 2153201051 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153201051?
You can download the 2153201051 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153201051?
MOLEX
