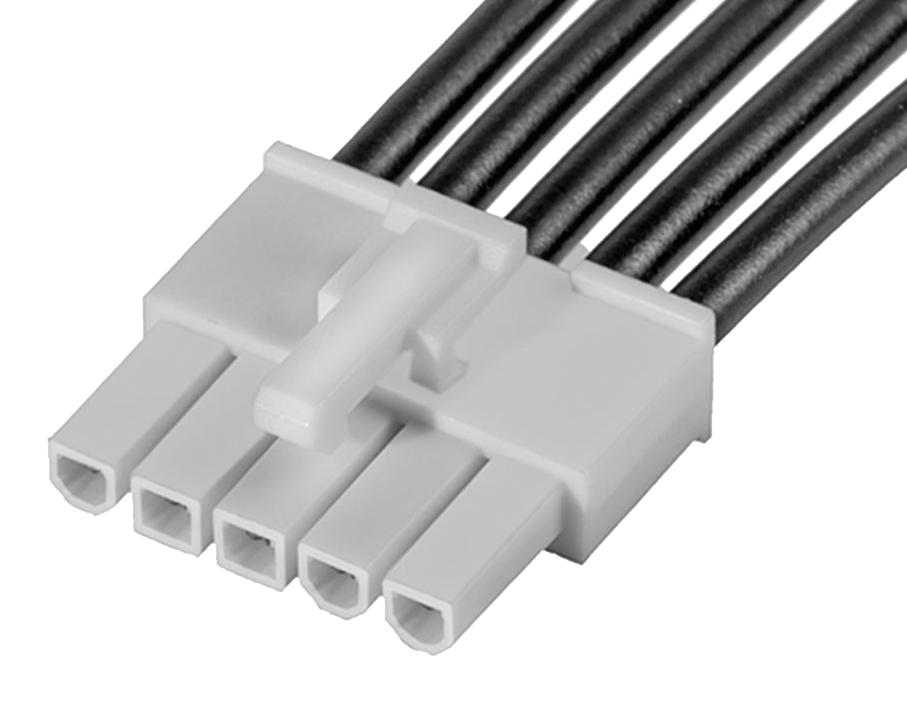

MOLEX 2153232052 Mini-Fit Jr. Cable Assembly
The MOLEX 215323-2052 is a Mini-Fit Jr. male-to-pigtail cable assembly designed for power and wire-to-wire applications. It boasts a robust construction with a black nylon resin housing, brass material, and gold/tin plating for optimal conductivity and durability. This assembly is ideal for applications requiring secure and efficient power transmission, commonly found in industrial equipment, automotive systems, and consumer electronics.
MOLEX 2153232052 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 5
- color: Black
- gender: Male-Pigtail
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264597796
- material_info: Not Contained Per - D(2020)4578-DC
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 5557
- mates_with_cable_assembly: 145135
- sales_drawing: 2153232051-000
