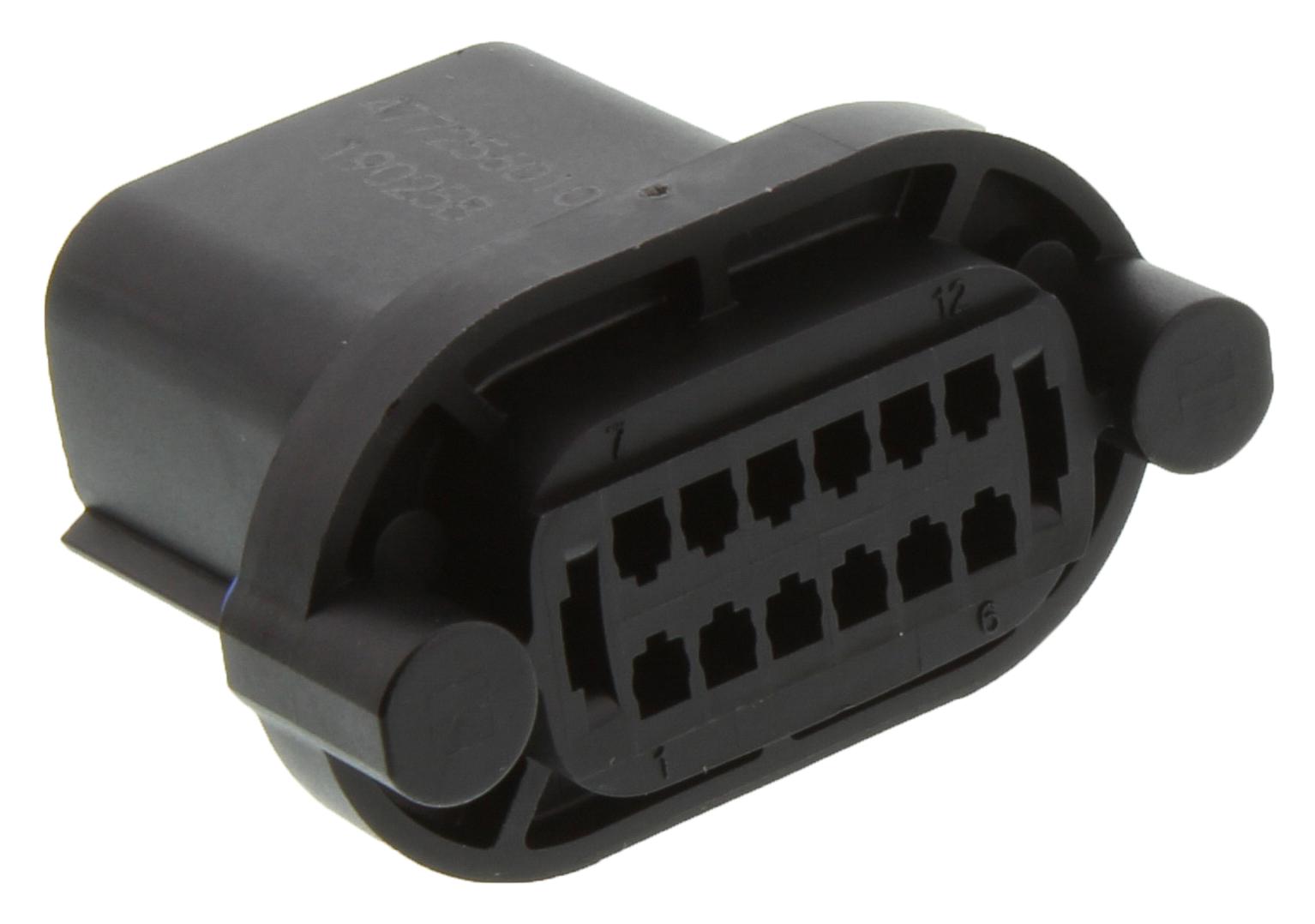

MOLEX 477256010 MX150 Connector Housing
The MOLEX 47725-6010 is a robust connector housing within the MX150 Sealed and Unsealed Connector System family. Designed for power and wire-to-wire applications, this housing accommodates a maximum of 12 circuits and utilizes a polarized design to ensure correct mating. Constructed from PBT resin with a black color and a blue gasket, it offers reliable performance in demanding environments. The housing is panel mountable and features a dual-row configuration with a 3.50mm mating interface pitch, making it suitable for a variety of industrial and automotive applications. It is RoHS compliant and low-halogen, aligning with environmental standards.
MOLEX 477256010 MX150 Connector Housing Specifications:
- circuits_maximum: 12
- color_resin: Black
- gender: Plug
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: PBT
- net_weight_g: 17.140
- number_of_rows: 2
- packaging_type: Tray
- panel_mount: Yes
- pitch_mating_interface_mm: 3.50
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40 to +125
- upc: 889056399678
- eu_elv_compliant: Yes
- china_roh: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: 33472
- use_with: 33000
