MOLEX 2157602007 Datasheet & Stock

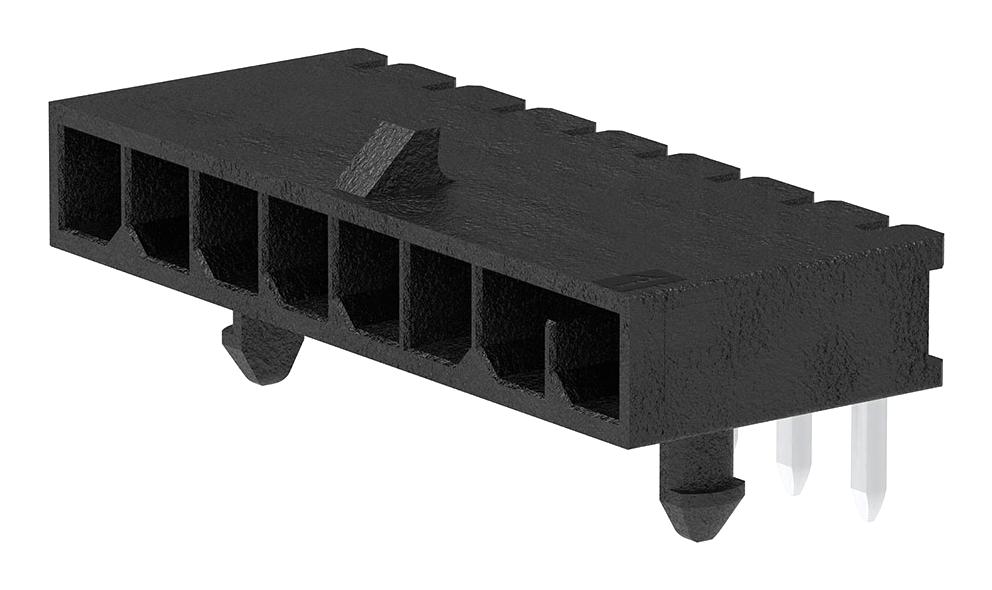

The 215760 series black-colored Micro-Fit+ right-angle header features a 3mm pitch and a single row design. It is plated with 0.38µm gold for excellent conductivity and corrosion resistance. The component is UL 94V-0 rated and glow-wire capable, ensuring flame retardancy and safety. It is keyed and locked to mating parts for secure connection. Made from high copper alloy and liquid crystal polymer resin materials, it offers durability and electrical insulation. The header is polarized to ensure proper mating with both the PCB and mating connectors, and it has a shrouded design for added protection. The through-hole termination interface allows for robust mounting. Operating temperature ranges from -40°C to +105°C. Each contact can carry up to 12.5A, with a maximum voltage of 600VAC/RMS or DC.
Frequently Asked Questions
Where can I buy MOLEX 2157602007?
You can click on the BUY or RFQ button to purchase 2157602007 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2157602007?
You can download the 2157602007 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2157602007?
MOLEX
