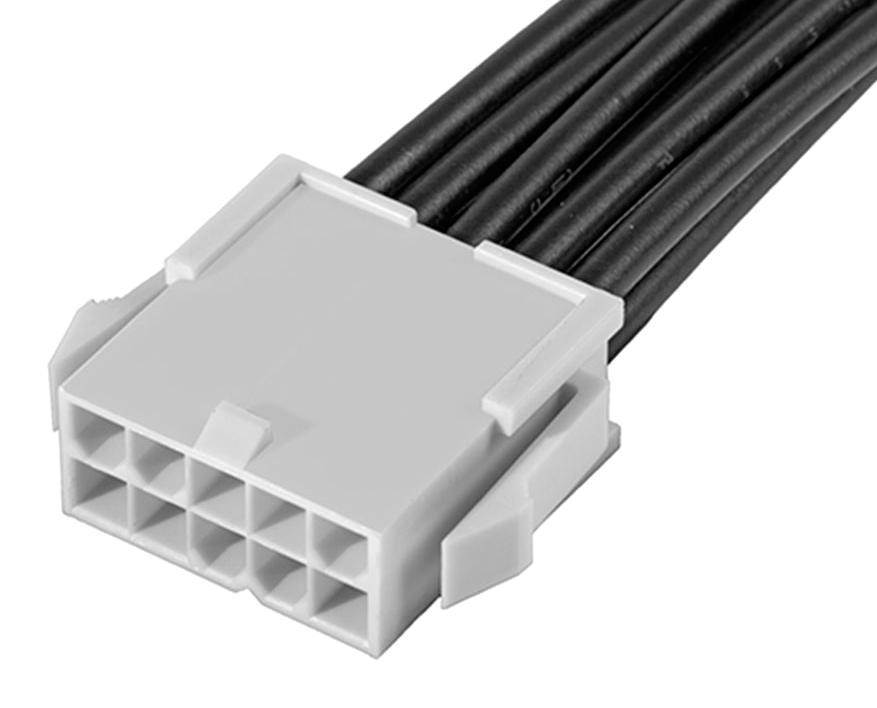

MOLEX 2153262101 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-2101 is a Mini-Fit Jr. female-to-pigtail cable assembly, part of the Mini-Fit Family Power Connectors series. This assembly is designed for power applications, including wire-to-board and wire-to-wire connections. It features a dual-row configuration with 10 circuits, a 150mm cable length, and gold plating on the mating interface for enhanced conductivity. The assembly utilizes a black nylon resin housing and is compatible with various mating connectors, offering versatility in design. It is RoHS compliant and suitable for applications requiring a robust and reliable power connection.
MOLEX 2153262101 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 10
- color: Black
- gender: Female-Pigtail
- lock_to_mating_part: Yes
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 39.098/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 0.762µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_AWG: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264590216
- mates_with: ['5559', '5566', '5569', '43810', '44068', '44281', '87427', '42404', '42440']
- drawing_number: 2153262101-000
