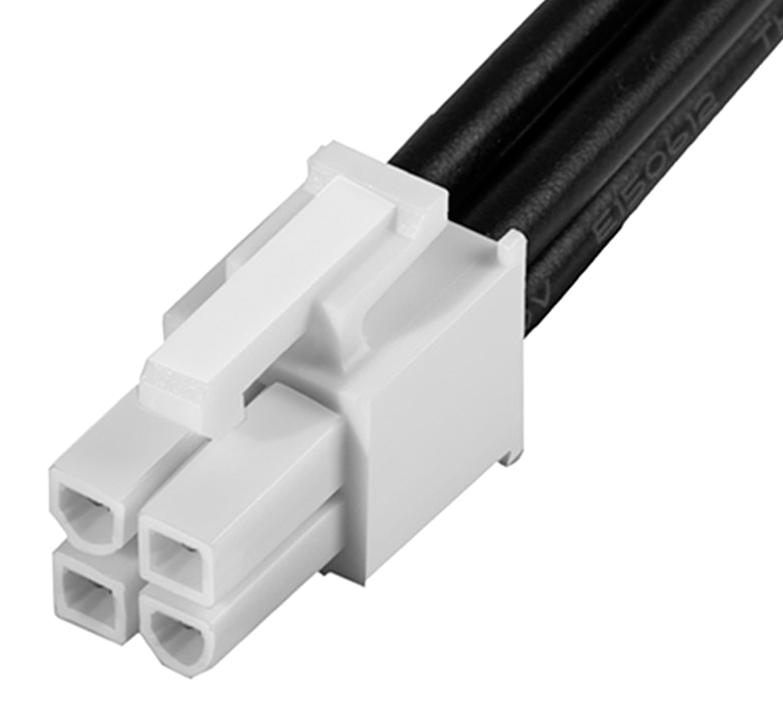

MOLEX 2153271042 Mini-Fit Jr. Cable Assembly
The MOLEX 215327-1042 is a Mini-Fit Jr. male-to-male off-the-shelf cable assembly, ideal for wire-to-wire power applications. It boasts a dual-row configuration, 4 circuits, and a 300mm length, ensuring versatility in various industrial settings. The tin plating on both mating and termination interfaces provides excellent conductivity and corrosion resistance. Constructed with brass and nylon materials, this cable assembly is designed for robust performance and reliable power transmission.
MOLEX 2153271042 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 300.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Brass
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 31.654
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.540µm
- plating_min_termination: 2.540µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264590285
- material_info: Not Low-Halogen
- reach_svhc: Not Contained
- sales_drawing: 2153271041-000
