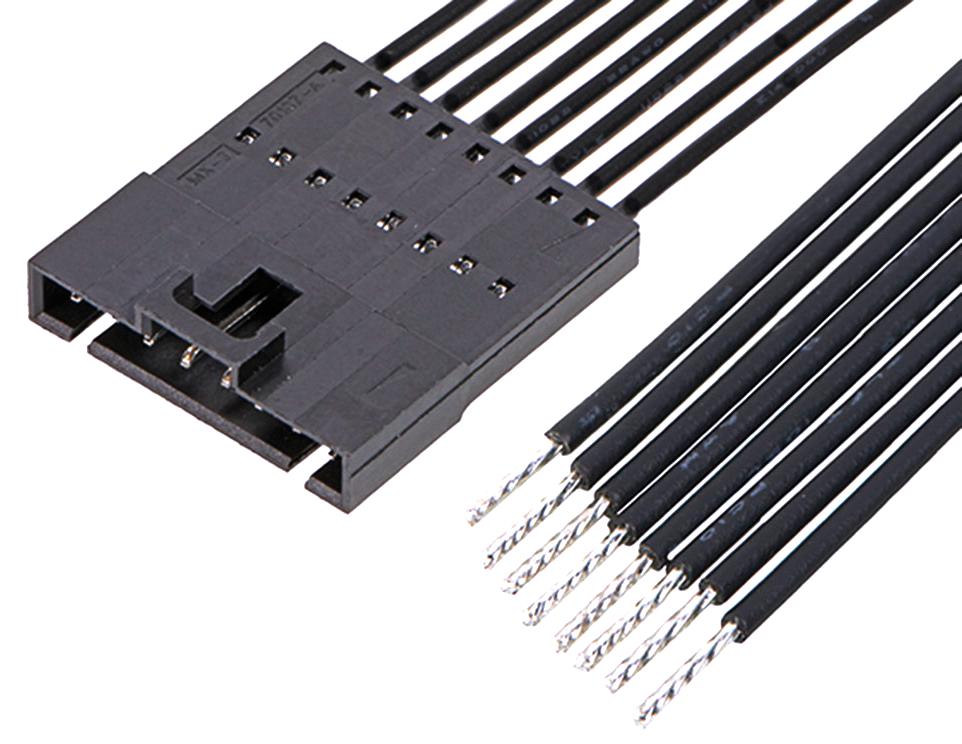

MOLEX 2162731080 SL Male-to-Pigtail Cable Assembly
The MOLEX 2162731080 is a versatile off-the-shelf cable assembly designed for reliable signal transmission in various industrial applications. This assembly combines a SL male connector with a pigtail termination, providing a secure and convenient connection solution. It's constructed with phosphor bronze and tin plating for enhanced conductivity and durability. The positive lock mechanism ensures a robust mating connection, while the black color provides a clean and professional appearance. Suitable for wire-to-wire single-ended applications, this cable assembly is a dependable choice for automation, instrumentation, and other demanding environments.
MOLEX 2162731080 SL Male-to-Pigtail Cable Assembly Specifications:
- Cable Length: 50.00mm
- Circuits (Loaded): 8
- Color: Black
- Gender: Male-Pigtail
- Lock: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating: Tin
- Material - Resin: Polyester Alloy
- Mating Material - Plating: Tin
- Net Weight: 4.620/g
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface: Style: Crimp or Compression
- Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- UL: 11028
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
