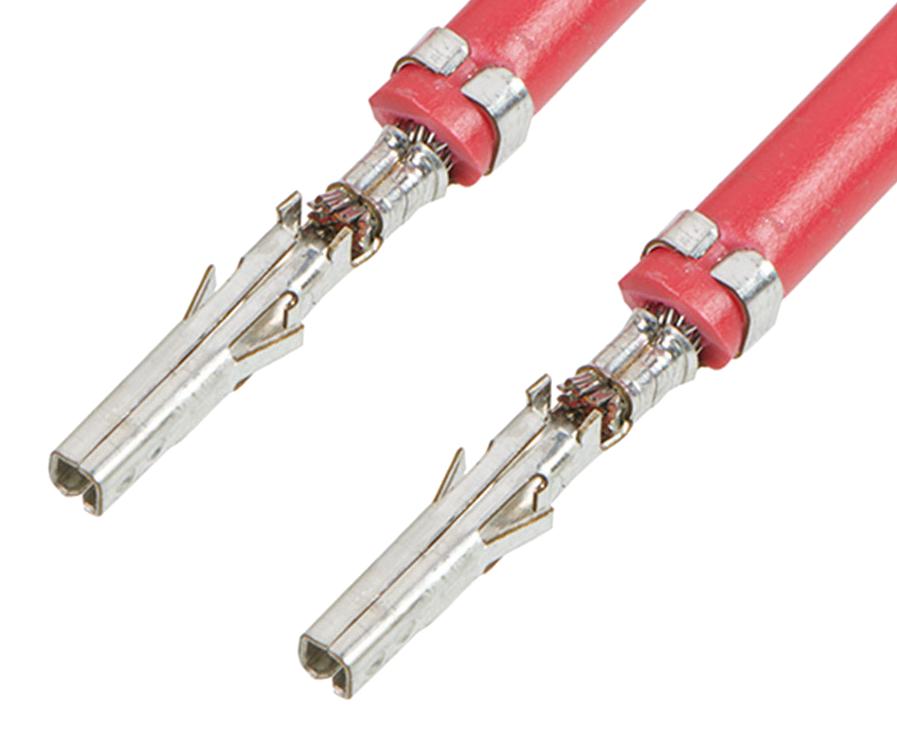

MOLEX 2153402125 Mini-Fit Jr. Power Lead
The pre-crimped Mini-Fit Jr. female-to-female leads measure 450mm in length and are designed for reliable power connections in industrial wiring. With tin plating, these leads support a maximum current of 9.0A and a voltage of 600V, making them suitable for power and wire-to-wire applications. They feature a crimp or compression termination interface, fit wires from 1.80 to 3.10mm in insulation diameter, and are made from brass with tin plating for durability and corrosion resistance. These leads are compliant with RoHS standards, ensuring eco-friendly manufacturing and use. They are ideal for connector-to-connector connections in various power supply and electrical assemblies, supporting up to 16 AWG wire sizes and compatible with Mini-Fit Jr. series receptacles and panel mounts.
MOLEX 2153402125 Mini-Fit Jr. Power Lead Specifications:
- Cable Length: 450.00mm
- Circuits (Loaded): 1
- Color - Resin: Red
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 16
- Wire Insulation Diameter: 1.80-3.10mm
- Electrical Current - Maximum per Contact: 9.0A
- Maximum Voltage - 600V
- RoHS Compliance: Yes
- Application: Power, Wire-to-Wire, Power connections
- Termination Interface: Crimp or Compression
- Net Weight: 10.143 grams
- Packaging: Bag
- Connector Series: Mini-Fit Jr.
- Compatible with: Mini-Fit Jr. receptacle housing and panel mounts
Buy the Molex 215340 Series – Reliable Power Connector for Industrial Applications
Secure your power and wire-to-wire connections with Molex Mini-Fit Jr. female-to-female leads. These 450mm copper brass leads feature tin plating for corrosion resistance and support 16 AWG wire with a maximum current of 9.0A at 600V. Ideal for industrial and electrical assembly applications, they feature crimp or compression termination interfaces compatible with Mini-Fit Jr. series connectors and panel mounts. RoHS compliant, durable, and easy to install, these leads are essential for reliable, maintenance-free power distribution in automation and control systems.
Order your Molex 2153402125 series pre-crimped leads today and ensure reliable, durable power connections for your industrial projects.
