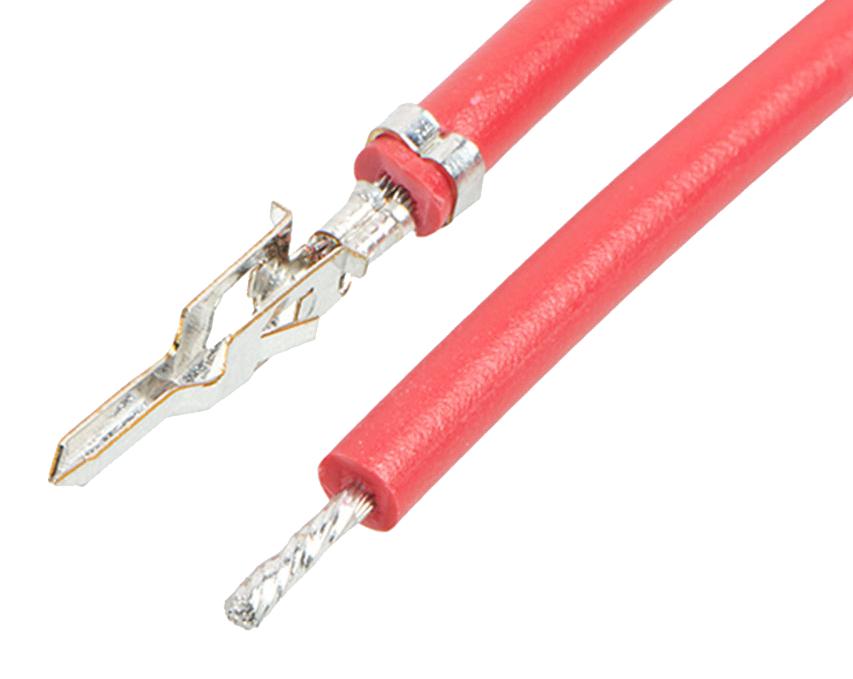

MOLEX 2153432113 Mini-Fit Jr. Pre-Crimped Lead
The MOLEX 215343-2113 is an off-the-shelf pre-crimped lead assembly, ideal for power and wire-to-wire connections. This assembly utilizes a Mini-Fit Jr. male connector transitioning to a pigtail, offering a convenient and reliable solution for various industrial applications. The tin plating ensures excellent conductivity and corrosion resistance, while the red resin color provides easy identification. It is RoHS compliant and supports a maximum current of 9.0A at a maximum voltage of 600V.
MOLEX 2153432113 Mini-Fit Jr. Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color: Red (Resin)
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 3.901/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560561
- sales_drawing: 2153431111-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
Buy the 215343-2113 MOLEX Mini-Fit Jr. Pre-Crimped Lead | myMectronic
Purchase the genuine MOLEX 215343-2113 Pre-Crimped Lead securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153432113?
You can click on the BUY or RFQ button to purchase 2153432113 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153432113?
You can download the 2153432113 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153432113?
MOLEX
