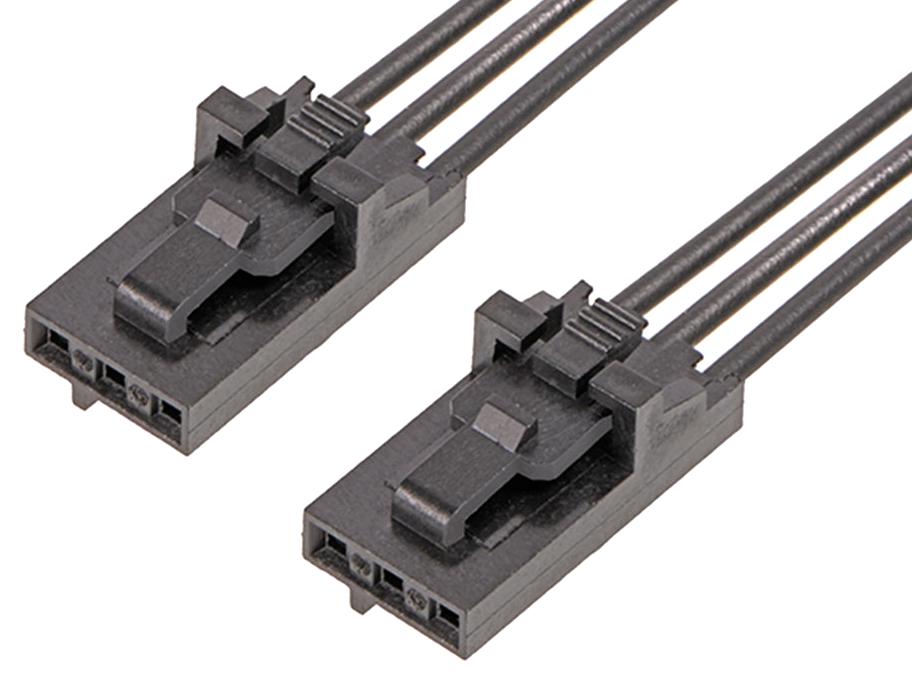

MOLEX 2162701032 Stackable Linear Connector
This versatile off-the-shelf linear (SL) connector assembly supports prototyping and mass production in various applications. It features positive lock design, dual contact points for reliability, and a connector position assurance lock for vibration resistance. Suitable for consumer, automotive, medical, and telecommunication networks, it handles up to 600V AC/DC and 3A current. Made with polyester alloy housing, phosphor bronze contacts with tin plating, operating from -40°C to +105°C. Supports 25 mating cycles and offers flexible mounting options, including vertical and right-angle headers for comprehensive system compatibility.
MOLEX 2162701032 Stackable Linear Connector Specifications:
- Connector Type: SL Female-to-SL Female
- Cable Length: 150.00mm
- Number of Circuits: 3
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Voltage Rating: 600V AC/DC
- Current - Maximum per Contact: 3.0A
- Operating Temperature Range: -40°C to +105°C
- Mating Cycles: up to 25
- Housing: Stackable, low-profile, vertical, and right-angle options
- Standards: UL E29179, CSA LR19980
- Lock: Connector Position Assurance (CPA)
Buy the Buy Molex Cable Assembly Part Number 2162701032 Online
Purchase your Molex Stackable Linear Connector Part Number 2162701032 online today for high-reliability connections suitable for industrial, automotive, and medical applications. Engineered with positive lock features, dual contact points, and a secure CPA lock, this connector guarantees excellent electrical stability and mechanical durability. Its versatile design accommodates vertical and right-angle headers, supporting different system layouts and configurations. With a maximum voltage of 600V and current of 3A, it operates efficiently from -40°C to +105°C, making it ideal for demanding environments and long-term use in various electronic systems.
Order your Molex Series216270 2162701032 cable assembly today and ensure reliable, high-quality electrical connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 2162701032?
You can click on the BUY or RFQ button to purchase 2162701032 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162701032?
You can download the 2162701032 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162701032?
MOLEX
