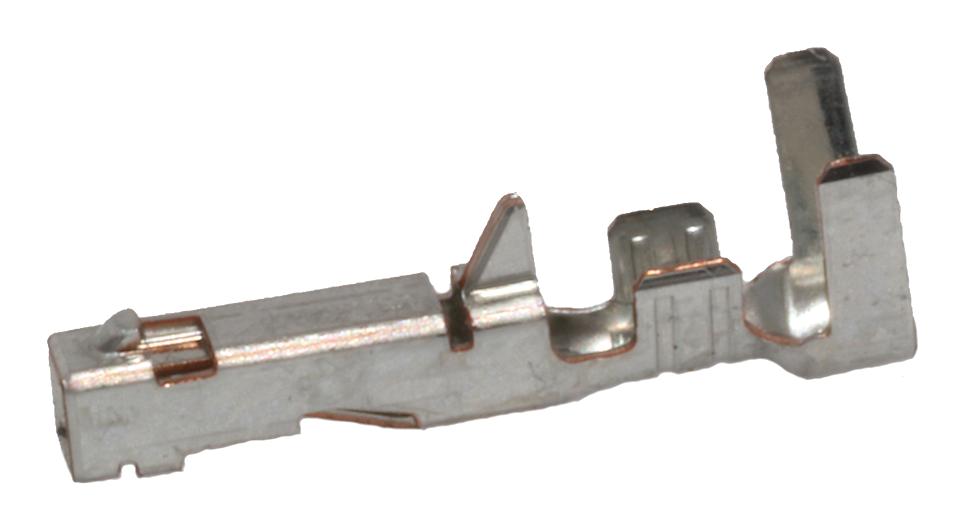

MOLEX 505978010 Wire Crimp Terminal
The CP-6.5 Wire-to-Wire Crimp Terminal Female is designed for reliable electrical connections in wire-to-wire applications. Compatible with 16-20 AWG wire sizes, it features a durable copper alloy metal construction with tin plating for excellent conductivity and corrosion resistance. This crimp terminal supports up to 12.5A current and 600V AC/DC voltage ratings, making it suitable for power and signal transmission. It is supplied in reel packaging, ensuring easy automation and assembly in manufacturing processes. The terminal is rated for multiple mating cycles, ensuring long-lasting performance in various electronic and electrical systems.
MOLEX 505978010 Wire Crimp Terminal Specifications:
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 16, 18, 20
- Wire Insulation Diameter: 2.00-3.30mm
- Durability (mating cycles max): 30
- Current - Maximum per Contact: 12.5A
- Voltage - Maximum: 600V AC/DC
- Net Weight: 270.200 mg
- Packaging Type: Reel
- Termination Interface: Crimp or Compression
- Product Family: Power, Wire-to-Wire
- Series: CP-6.5
- Part Number: 505978010
Buy the Molex Series CP-6.5 Wire-to-Wire Crimp Terminal: 505978010
Order the Molex wire crimp terminal now for secure electrical connections suitable for 16-20 AWG wires. Designed with durable copper alloy and tin plating, it provides excellent conductivity and corrosion resistance. Supports up to 12.5A current and 600V ratings, it’s ideal for power and signal transmission in electronic devices. The reel packaging ensures quick and efficient automation, simplifying assembly processes. With a maximum of 30 mating cycles, this terminal guarantees long-lasting performance and dependable performance in various electrical applications, ensuring your projects operate smoothly and reliably.
Get Molex 505978010 today—built for reliable power and signal connections in wire-to-wire assemblies.
Frequently Asked Questions
Where can I buy MOLEX 505978010?
You can click on the BUY or RFQ button to purchase 505978010 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 505978010?
You can download the 505978010 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 505978010?
MOLEX
