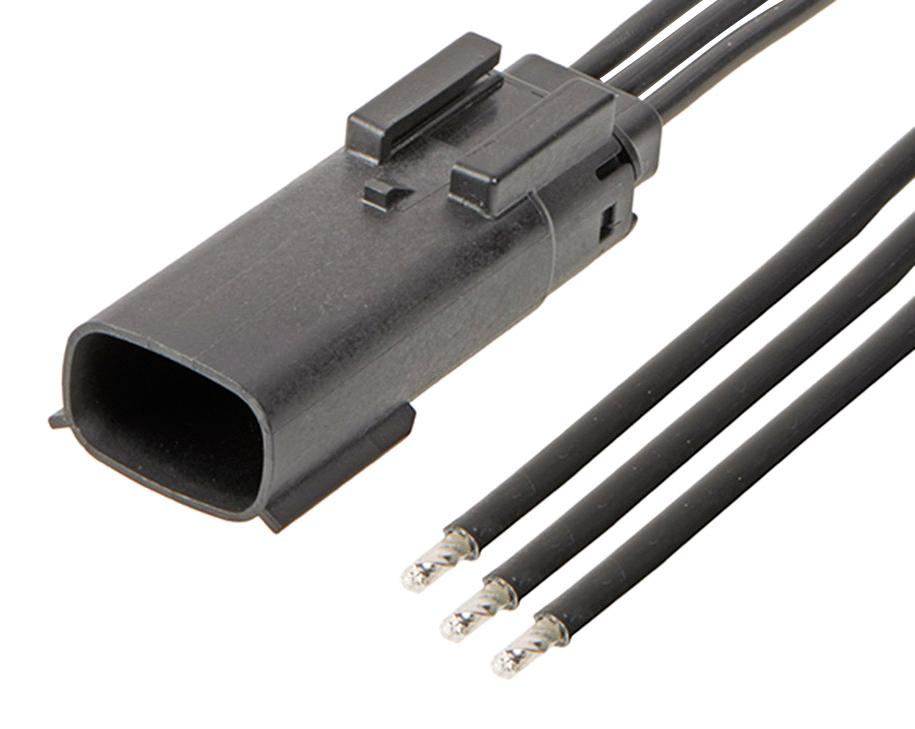

MOLEX 2162831032 MX150 Cable Assembly
The MOLEX 216283-1032 is a robust MX150 male-to-pigtail cable assembly designed for reliable power and signal transmission in various industrial applications. This off-the-shelf cable assembly features a 300mm length, tin plating on both mating and termination interfaces, and a single row configuration. Constructed with a high-performance alloy (HPA) and SPS/Nylon resin, it offers excellent durability and protection. It is suitable for wire-to-board and wire-to-wire connections, providing a secure and efficient solution for demanding environments.
MOLEX 2162831032 MX150 Cable Assembly Specifications:
- overview: Off-the-Shelf Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Single Ended
- connector_type: MX150-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 3
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_mating: Tin (Sn)
- plating_termination: Tin (Sn)
- material_resin: SPS/Nylon
- net_weight: 298.000/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 3.50mm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 2.70mm max.
- wire_size_awg: 14
- wire_cable_type: TXL Stranded
- current_max_per_contact: 22.0A
- voltage_max: 14V DC
- upc: 193264714513
- material_info: High Performance Alloy (HPA)
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
- elv: Not Relevant
- rohs: Compliant
- china_roh: Green Image
- phthalates: Not Contained
