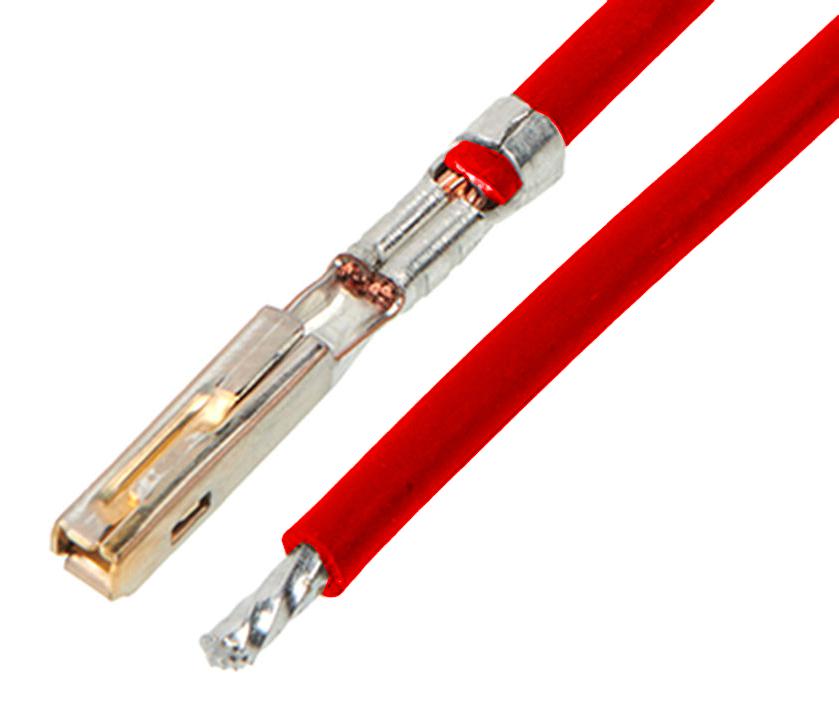

MOLEX 2163012226 MX150 Pre-Crimped Lead
The MOLEX 216301-2226 is an off-the-shelf pre-crimped lead assembly, specifically designed for MX150 connectors. This lead provides a convenient and reliable connection solution for power, wire-to-board, and wire-to-wire applications. The gold plating ensures excellent conductivity and corrosion resistance, while the 14 AWG TXL wire provides robust current carrying capacity. Ideal for applications requiring a pre-terminated connection, reducing assembly time and ensuring consistent quality.
MOLEX 2163012226 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 600.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: High Performance Alloy (HPA)
- plating_mating: Gold
- net_weight: 14.261/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 14
- wire_cable_type: TXL
- current_maximum_per_contact: Contact Molex
- voltage_maximum: 14V DC
- upc: 195842118515
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Low-Halogen
- sales_drawing: 2163011221-000
- use_with_housing: MX150 Dual Row Housing 33472, MX150 Single Row Housing 33471, MX150 Hybrid Housing 33476
