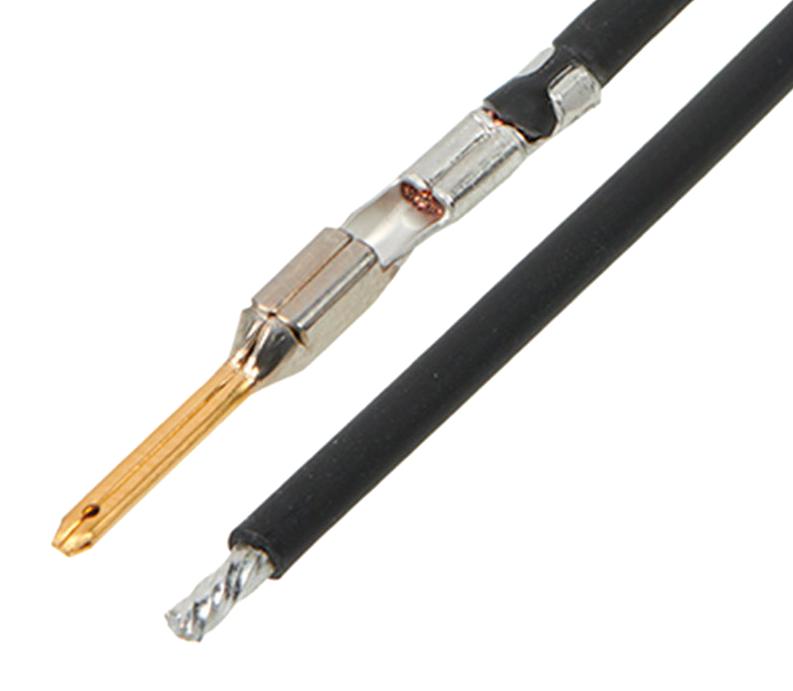

MOLEX 2163031212 MX150 Pre-Crimped Lead
The MOLEX 216303-1212 is an off-the-shelf pre-crimped lead assembly, specifically designed for connecting MX150 terminals to pigtails. It offers a convenient and reliable solution for power and signal transmission in wire-to-board and wire-to-wire applications. The lead is gold-plated for enhanced conductivity and corrosion resistance, and features a black resin color. Constructed with a high-performance alloy (HPA) for durability, this assembly simplifies integration and reduces assembly time.
MOLEX 2163031212 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- plating_material: Gold (Au)
- net_weight: 3.019/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 16
- wire_cable_type: TXL
- current_max_per_contact: Contact Molex
- voltage_max: 14V DC
- upc: 195842071377
- elv_compliance: Not Relevant
- rohs_status: Compliant
- reach_svhc_status: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Low-Halogen
- sales_drawing: 2163031211-000
- use_with_housing: MX150 Dual Row Housing 33482, MX150 Single Row Housing 33481, MX150 Hybrid Housing 33486
