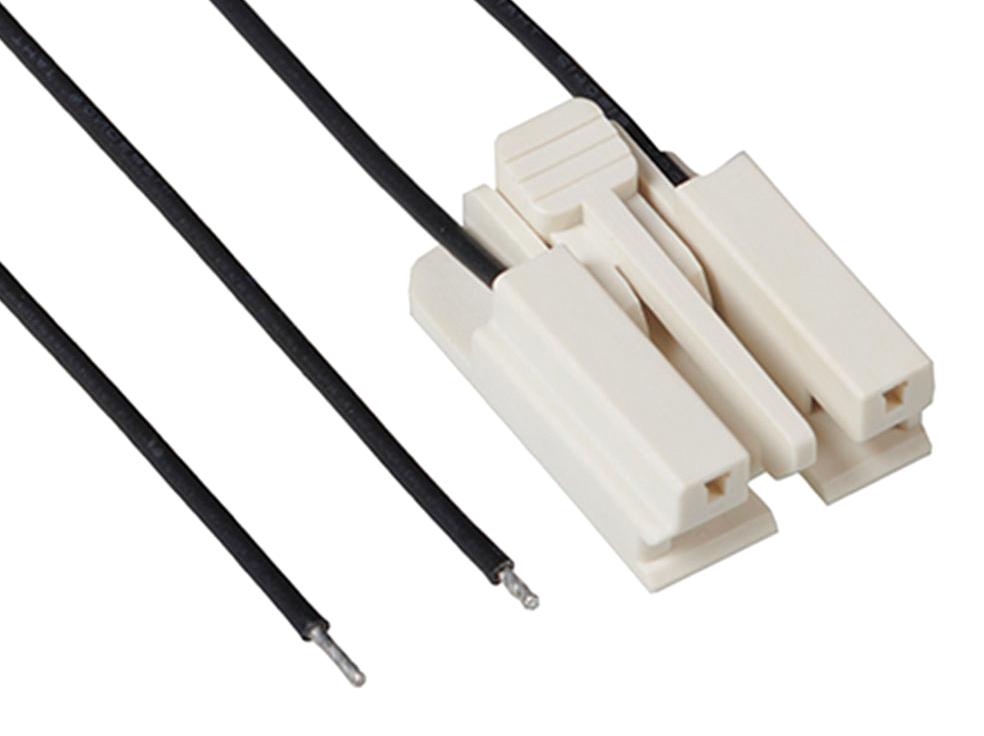

MOLEX 2163311021 EdgeLock Cable Assembly
The MOLEX 216331-1021 is an EdgeLock wire-to-edge-card signal system cable assembly designed for reliable signal transmission in various industrial applications. It boasts a 2.00mm pitch, tin plating for enhanced conductivity, and a 100.00mm length. The assembly incorporates a phosphor bronze material for durability and a nylon resin housing for insulation and protection. It is ideal for applications requiring a secure and compact connection between wires and edge cards.
MOLEX 2163311021 EdgeLock Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 216331
- application: Signal, Wire-to-Board Assembly
- configuration: Single Ended
- connector_type: Edgelock-to-Pigtail
- cable_length: 100.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 2.558
- packaging_type: Bag
- pitch_mating_interface: 2.00mm
- plating_min_mating: 1.000µm
- wire_insulation_diameter_mm: 1.10-1.40
- wire_size_awg: 22
- wire_cable_type: UL 10002
- current_max_per_contact_a: 3.0
- voltage_max_v: 125
- upc: 193264682959
Buy the 216331-1021 MOLEX EdgeLock Cable Assembly | myMectronic
Securely purchase the MOLEX 216331-1021 EdgeLock cable assembly and ensure reliable connectivity for your projects.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2163311021?
You can click on the BUY or RFQ button to purchase 2163311021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2163311021?
You can download the 2163311021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2163311021?
MOLEX
