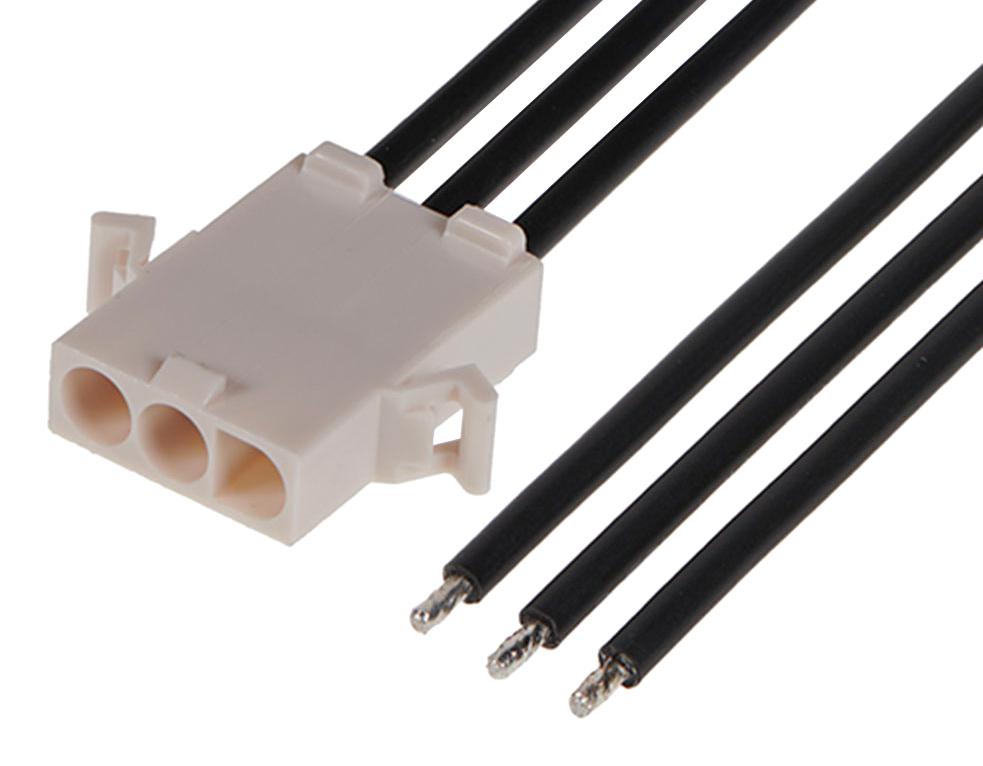

MOLEX 2162931033 Male-to-Pigtail Cable Assembly
The 216293 series is a standard .093-inch male-to-pigtail cable assembly suitable for a wide range of electronic applications including consumer electronics, data, and networking. It features a 600mm length, tin-plated brass contacts, and supports up to 12A current and 600V voltage ratings. Designed for easy installation, it includes options for panel-mounting with pre-bent ears and keying features to prevent misconnection. Compatible with .093-inch connector housings and terminals, its durable construction ensures reliable performance in temperatures from -40°C to +105°C, rated for up to 25 mating cycles.
MOLEX 2162931033 Male-to-Pigtail Cable Assembly Specifications:
- Cable Length: 600.00mm
- Circuits: 3
- Color - Resin: Natural
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 6.70mm
- Wire Size AWG: 14
- Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 600V AC (RMS)/DC
- Operating Temperature Range: -40°C to +105°C
- Certifications: RoHS compliant, UL 1015
- Connector Type: Standard .093-inch male-to-pigtail
- Terminations: Crimp or Compression
- Rated Mating Cycles: Up to 25
Buy the Molex Series 216293 Standard .093-inch Male-to-Pigtail Cable Assembly: 2162931033
Enhance your electronic systems with the Molex Series 216293 male-to-pigtail cable assembly, offering a 600mm length, rated for 12A current and 600V voltage. Constructed with tin-plated brass contacts and durable nylon housing, it ensures reliable electrical connections in various applications including consumer electronics, data, and networking. Its compatibility with .093-inch connectors, ease of installation with panel-mount options, and capability to withstand temperatures from -40°C to +105°C make it an essential component for robust wiring solutions. Order online today for dependable performance and efficient device assembly.
Order your Molex Series 216293 standard .093-inch male-to-pigtail cable assembly today and ensure reliable connectivity for your electronic projects with high-quality wiring solutions.
Frequently Asked Questions
Where can I buy MOLEX 2162931033?
You can click on the BUY or RFQ button to purchase 2162931033 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162931033?
You can download the 2162931033 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162931033?
MOLEX
