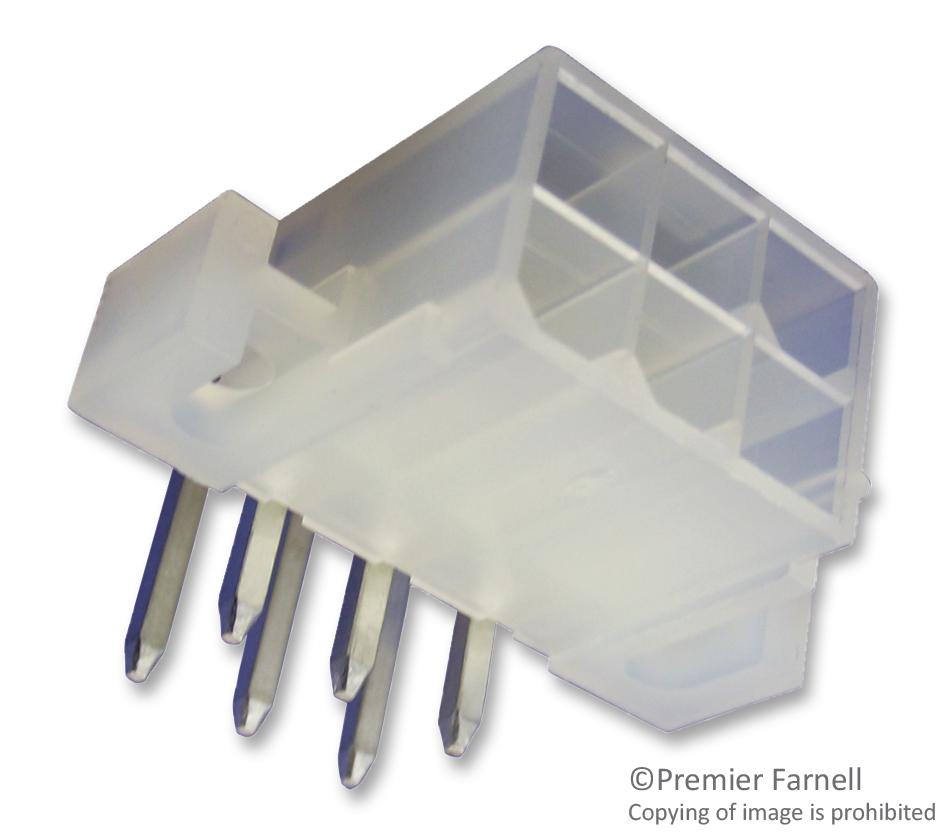

MOLEX 39291188 Dual Row Right-Angle Header
The MOLEX 39-29-1188 Mini-Fit Jr. power connector is a robust and reliable solution for connecting power wires to printed circuit boards. Its right-angle orientation and PCB mounting flange simplify integration into space-constrained designs. Constructed with a polyamide nylon 6/6 resin and tin plating, this connector offers excellent durability and corrosion resistance. Common applications include industrial machinery, automation systems, and consumer electronics where secure and efficient power transmission is required. Refer to Molex product specification PS-5556-001 for detailed current derating information.
MOLEX 39291188 Dual Row Right-Angle Header Specifications:
- Product Family: PCB Headers
- Series: 5569
- Application: Power, Wire-to-Board
- Circuits (Loaded): 18
- Circuits (maximum): 18
- Color - Resin: Natural
- Durability (mating cycles max): 30
- First Mate / Last Break: No
- Flammability: 94V-2
- Glow-Wire Capable: No
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Net Weight: 6.546/g
- Number of Rows: 2
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.78mm
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 005
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 260
- Engineering Number: 5569-18A1
- Application Specification: AS-5557-001-001
- Packaging Specification: 55690001-PK-000, PK-5569-002-001
- Product Specification: PS-45750-001-001, PS-5556-001-001
- Sales Drawing: SD-5569-002-000
