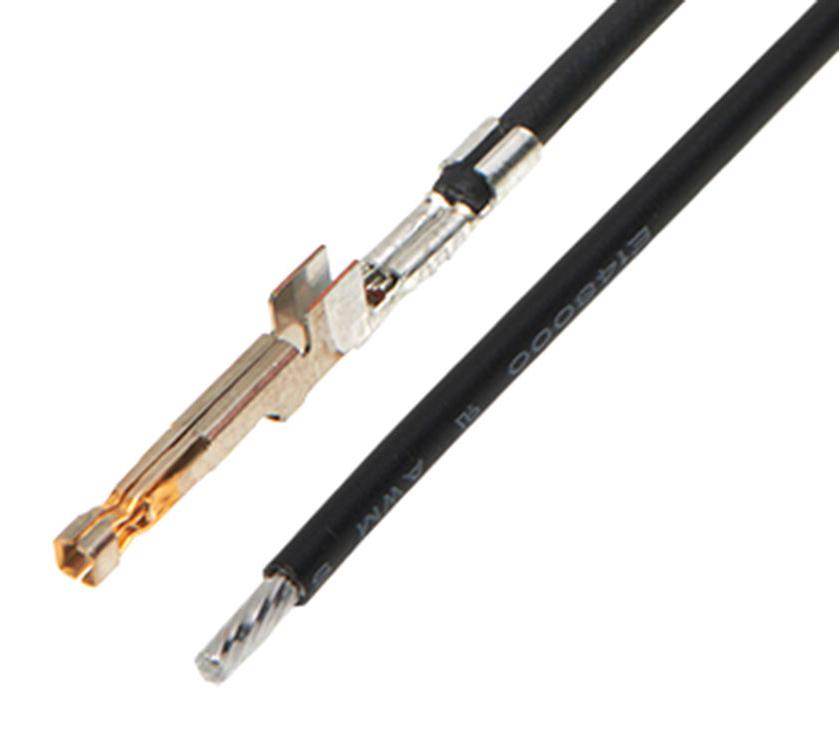

MOLEX 2174711221 pre-crimped power lead
Molex's pre-crimped leads offer a cost-effective and reliable solution for prototyping, pre-production, and mass manufacturing. This specific ultra-fit female-to-pigtail cable assembly, part of the 217471 series, features 16 AWG wire and a length of 75.00mm. Made with high-conductivity copper plated with gold, it is housed in durable black resin. It supports a maximum voltage of 600V AC/DC and a current of 12A per contact, meeting UL 1061 standards. Fully tested and compatible with Molex connector families, these leads simplify assembly and reduce time-to-market for various electronic projects.
MOLEX 2174711221 pre-crimped power lead Specifications:
- Cable Length: 75.00mm
- Wire Size: 16 AWG
- Material - Metal: High Conductivity Copper
- Material - Plating: Gold
- Housing: Black Resin
- Current - Maximum per Contact: 12.0A
- Voltage - Maximum: 600V AC/DC
- Insulation Diameter: 2.03-2.39mm
- Application: Power, Wire-to-Board
- Assembly Configuration: Connector to Connector
- Packaging Type: Bag
- RoHS Compliance: Yes
- UL Standard: UL 1061
- Gender: Female-Pigtail
Buy the Buy Molex Ultra-Fit Female-to-Pigtail Part Number 2174711221 Online
Secure your projects with Molex's ultra-fit female-to-pigtail power leads, featuring gold-plated copper contacts, 16 AWG wire, and a 75mm length for versatile power connections. Perfect for prototyping, pre-production, and mass manufacturing, these fully tested cables support up to 12A current and 600V voltage, complying with UL 1061 standards. Easy to install with crimp or compression termination, they are housed in durable black resin, ensuring long-lasting performance and quick assembly for various electronic and power distribution applications.
Get Molex 2174711221 today—built for reliable power connections in electronic assemblies and rapid prototyping.
Frequently Asked Questions
Where can I buy MOLEX 2174711221?
You can click on the BUY or RFQ button to purchase 2174711221 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2174711221?
You can download the 2174711221 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2174711221?
MOLEX
