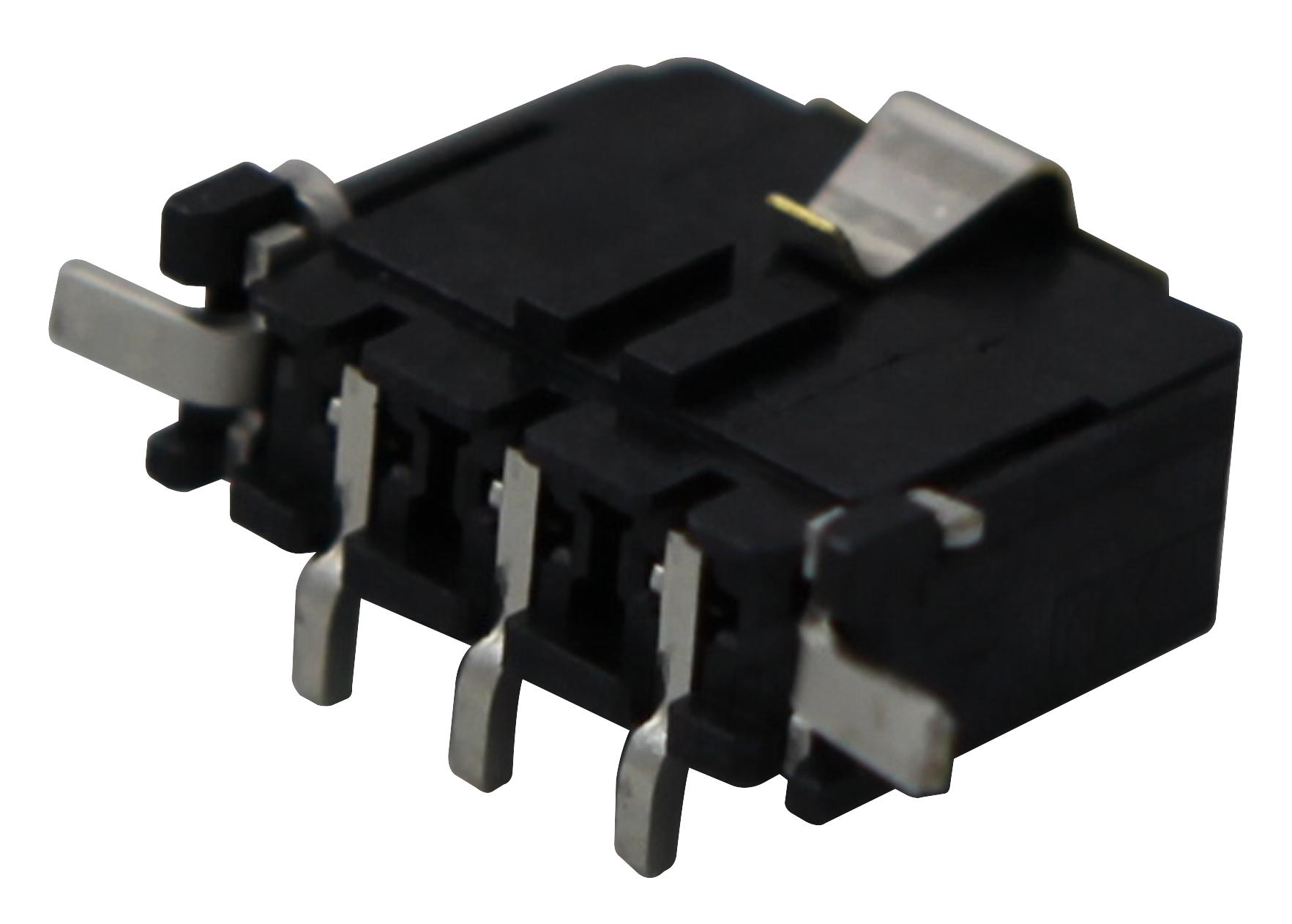

MOLEX 436500324 Micro-Fit 3.0 Vertical Header
The MOLEX 43650-0324 Micro-Fit 3.0 Vertical Header is a robust connector solution for power and wire-to-board applications. Designed with a 3.00mm pitch and a single-row configuration, this header accommodates 3 circuits and is constructed with a brass body and tin plating for reliable electrical contact. It is glow-wire capable, meeting stringent safety standards for household and similar electrical appliances. The header's high-temperature thermoplastic resin ensures durability in demanding environments, making it suitable for a wide range of industrial applications. It is RoHS compliant and features a polarized design for secure PCB mounting.
MOLEX 436500324 Micro-Fit 3.0 Vertical Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Application: Power, Wire-to-Board
- Circuits (Loaded): 3
- Circuits (maximum): 3
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 17.27mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.802/g
- Number of Rows: 1
- Orientation: Vertical
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface Style: Surface Mount
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max Process Temperature (seconds): 030
- Lead-free Process Capability: REFLOW
- Max Cycles at Max Process Temperature: 003
- Process Temperature max C: 260
